X-On Electronics has gained recognition as a prominent supplier of TC-6615-7-260G Tactile Switches across the USA, India, Europe, Australia, and various other global locations. TC-6615-7-260G Tactile Switches are a product manufactured by HCTL. We provide cost-effective solutions for Tactile Switches, ensuring timely deliveries around the world.

TC-6615-7-260G HCTL

Name: TC-6615-7-260G
Brand: HCTL
SKU: TC66157260G_HCTL
Availability: InStock
Rating: 5 (11 reviews)

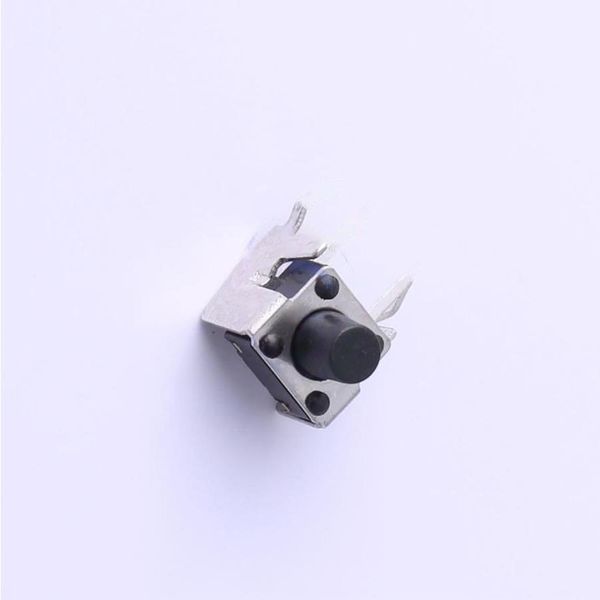

TC-6615-7-260G electronic component of HCTL

Images are for reference only
See Product Specifications

Part No.	TC-6615-7-260G
Manufacturer:	HCTL
Category:	Tactile Switches
Description:	No -25℃~+85℃ 7mm PCPin Black 50mA Round Button Lying SPST 100MΩ 80000 260gf@±50gf 12V Plugin Tactile Switches ROHS
Datasheet:	TC-6615-7-260G Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

20: USD 0.0318 ea
Line Total: USD 0.64

Availability - 7730
Ship by Mon. 06 Jan to Thu. 09 Jan

MOQ: 20 Multiples: 20
Pack Size: 20

TC-6615-7-260G More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

7730

Ship by Mon. 06 Jan to Thu. 09 Jan

MOQ : 20
Multiples : 20

20 : USD 0.0318
200 : USD 0.0258
1000 : USD 0.0205
2000 : USD 0.0185
10000 : USD 0.0169
20000 : USD 0.0158

Specifications

Manufacturer
HCTL HCTL

Product Category
Tactile Switches Tactile Switches

Operating Force
260gf@ ± 50gf 260gf@ ± 50gf

Voltage Rating DC
12 V 12 V

Mounting Style
Lying Lying

Category
Tactile Switches Tactile Switches

Rohs
y y

With Lamp
No No

Operating Temperature
- 25 C ~ + 85 C - 25 C ~ + 85 C

Switch Height
7 mm 7 mm

Pin Style
PCPin PCPin

Actuator/Cap Color
Black Black

Contact Current
50 mA 50 mA

Actuator Style
Round Button Round Button

Circuit
SPST SPST

Insulation Resistance
100 MOhms 100 MOhms

Mechanical Life
80000 80000

Notes:- Show Stocked Products With Similar Attributes.
