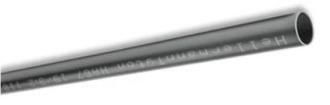

HellermannTyton DATA SHEET HA67: Heat-Shrinkable Tubing DESCRIPTION An adhesive lined cross linked heavy wall, heatshrink, polyolefin tubing having a shrink ratio of up to 6:1 with an operating temperature range of 55C to + 80C. APPLICATION The toughness and weatherability of the tubing makes it well suited to exposed applications for protection of cable joints. Ideal for application to extremely different diameter cable, connectors or components PROPERTIES TUBING Properties Typical Results Test Method Tensile Strength 14 MPa IEC 540 Elongation 400% IEC 540 Dielectric Strength 20 kV/mm ASTM D2671 Water Absorption at 25C < 0.2% ASTM D570 Solvent Resistance MIND Compound Excellent Insulating Oil Very Good Paraffin Very Good Bitumen Excellent 14 Volume Resistivity 1x10 Ohm cm ASTM D 257 Thermal Shock Pass ASTM D2671 Standard Colour Black ADHESIVE Properties Typical Results Test Method Softening Point 85C ASTM D E8 Peel Strength 10N/25mm DIN 30672 Dielectric Strength 20 kV/mm ASTM D2671 Water Absorption at 25C < 0.2% ISO 62 . STANDARDS Approved to: N/A Conforms to: N/A Pennycross Close, Plymouth, Devon PL2 3NX, England Issue 3 05-2009 Telephone: +44 (0) 1752 701261 Fax: +44 (0) 1752 790058HellermannTyton DATA SHEET HA67: Heat-Shrinkable Tubing DIMENSIONS Bore as supplied, Bore recovered, Wall Thickness Hellermann minimum (mm) maximum (mm) (mm) Part No D d W 19.0-3.2 19.0 3.2 3.2 33.0-5.5 33.0 5.5 3.4 44.4-7.4 44.4 7.4 3.6 50.8-8.3 50.8 8.3 4.3 69.8-11.7 69.8 11.7 4.8 88.9-17.1 88.9 17.1 4.8 119.4-22.9 119.4 22.9 4.8 235.0-40.0 235.0 40.0 4.8 Pennycross Close, Plymouth, Devon PL2 3NX, England Issue 3 05-2009 Telephone: +44 (0) 1752 701261 Fax: +44 (0) 1752 790058
