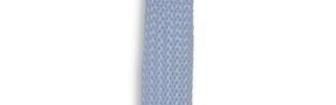

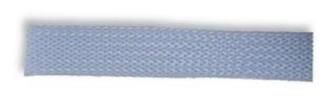

w w w . t r e s s e . c o m Fiche produits / Product description TISA-FLEX NCS MECHANICAL PROTECTION -60C +160C SPECIFICATIONS : Tisaflex NCS is braided flexible and expandable sleeve made of Polyamide 6-6 monofilaments. FEATURES AND ASSETS: Its dense, tight construction is particularly suited to Expandable sleeve abrasion protection of bundles of electrical cables. Excellent abrasion resistance Tisaflex NCS is a recyclable product, efficient in terms of the resistance and protection of electrical cables in Excellent cutting extreme conditions. resistance Its expandable feature makes it easy to install while Auto-extinguishing and halogen-free taking up significant differences in cross section, elbows, connections, etc., without bends or flattening. Lightweight Hot cutting to length means there is no fraying of the Recyclable ends. Insensitive to condensation The defined number of Tisaflex NCS references means and fungus a wide range of diameters can be covered thanks to its expandable capacity. TYPICAL Supplied in coils or cut to length, Tisaflex NCS is APPLICATIONS: an efficient and esthetic solution to protect your electrical cables. Protection of bundles of cables Automotive Powered environments Z.I. rue Marc Segu In 63600 a MBer T Tel. + 33 (0)4 73 82 45 75 Fax: + 33 (0)4 73 82 34 96 e-Ma Il: In Fo Tre SSe Tre SSe.co Mw w w . t r e s s e . c o m Fiche produits / Product description TISA-FLEX NCS FEATURE METHOD, STANDARD, REGULATIONS VALUE Chemical nature of monofilament PA 66, polyamide 66 N CAS : 32131-17-2 Melting point 255C. Continuous working temperature -60C to +160C. Peak temperature 200C - Renault D45 1333 and FMVSS 302 - Complies Classification B, auto-extinguishing - NF G 07-128 ( or ISO 4589 1&2) - Oxygen index: 31.7% Flammability - ISO 3795 - Complies Toxicity and harm from smoke - UL 94 - Raw material classed V2 - NF F 16-101 - Classification I2 F2 RoHS Directive 2002/95/CE Complies Environment European regulations Complies STANDARD REFERENCES USE ** CONSTRUCTION PACKAGING *** Number of Weight GREY BLACK MIN (mm.) MAX (mm.) Coil (m.) wires g/100m* NG03 NN03 2 4 48 320 100 NG04 NN04 3 6 60 400 100 NG05 NN05 3 7 72 510 100 NG06 NN06 4 8 84 570 100 NG08 NN08 5 10 96 660 100 NG10 NN10 7 12 120 825 50 NG12 NN12 8 14 144 1030 50 NG14 NN14 10 16 160 1035 50 NG16 NN16 12 18 192 1275 50 NG20 NN20 15 23 224 1485 50 NG25 NN25 18 28 256 1705 50 NG30 NN30 25 32 288 1910 50 NG40 NN40 30 44 384 2520 50 NG50 NN50 40 55 480 3170 50 NG60 NN60 50 65 600 3930 50 * Weight as guidance for 100 mm. ** r ecommended range of use *** coils: Sleeving packed in coil, attached with ties, covered with plastic film. r olls: Sleeving packed in rolls, covered with plastic film. These references are those of our standard Tisaflex NCS range. Please contact us for any other construction, parameter, material, packaging, colour, etc. Z.I. rue Marc Segu In 63600 a MBer T Tel. + 33 (0)4 73 82 45 75 Fax: + 33 (0)4 73 82 34 96 e-Ma Il: In Fo Tre SSe Tre SSe.co M INDEX A 09/09
