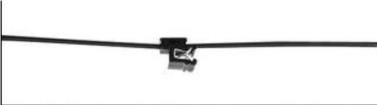

Cable Ties and Fixings 1.6 Cable Ties With Fixing Elements 2-Piece Fixing Ties for Edges, 1.0 - 3.0 mm, Side Fixing EdgeClip-Family These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel buidling and electrical industry. Features and Benefits Pre-assembled 2-piece fixing tie with EdgeClip Cable tie head can be moved after bundling EC9, EC10, EC21 and EC22 are for minimum bundle diameters of 1 mm T50ROSEC23 - the cable bundle runs parallel with the edge. For edges of 1 3 mm Width Length Bundle Material Material TYPE Drawing (W) (L) max. Cable Tie Foot Part Colour Tools Article-No. T30REC5A 3.6 148.0 33.0 135 PA66HS PA66HIRHS Black (BK) 2 4-6 156-00003 T50SOSEC5A 4.6 150.0 31.0 225 PA66HS PA66HIRHS Black (BK) 2-10 150-40593 T50ROSEC5A 4.6 200.0 45.0 225 PA66HS PA66HIRHS Black (BK) 2-10 150-40591 T50SOSEC5B 4.6 150.0 31.0 225 PA66HS PA66HIRHS Black (BK) 2-10 150-40583 T50REC5B 4.6 200.0 45.0 225 PA66HS PA66HIRHS Black (BK) 2-10 150-40582 T50ROSEC5B 4.6 200.0 45.0 225 PA66HS PA66HIRHS Black (BK) 2-10 150-40581 T18REC21 2.5 100.0 18.0 80 PA66W PA66HIRHS Black (BK) 2 4-6 156-01231 T50SOSEC21 4.6 150.0 35.0 225 PA66HS PA66HIRHS Black (BK) 2-10 156-00017 T50ROSEC21 4.6 200.0 45.0 225 PA66HS PA66HIRHS Black (BK) 2-10 156-00010 4.6 200.0 45.0 225 PA66HS PA66HIRHS Black (BK) 2-10 156-00011 T50ROSEC22 4.6 200.0 45.0 225 PA66W PA66HIRHS Black (BK) 2-10 156-00576 Q50REC5A 4.7 210.0 45.0 220 PA66W PA66W Black (BK) 2-10 156-01087 Q50REC5B 4.7 210.0 45.0 220 PA66W PA66W Black (BK) 2-10 156-01088 All dimensions in mm. Subject to technical changes. Recommended Tools 2 3 4 5 6 7 8 9 10 MK20 MK21 MK3SP MK3PNSP2 EVO7 MK7HT MK7P MK6 MK9 For more information on toolings please refer to the Application Tooling chapter. Further information at www.HellermannTyton.com/fixings 121 Date of issue: October 2015Cable Ties and Fixings 1.0 Material Information Material Specification Overview Material Operating Material Material MATERIAL Shortcut Temperature Colour** Flammability Properties* Specifications Natural Corrosion resistant Aluminium-alloy AL -40 C to +180 C Antimagnetic (NA) Weather-resistant Chloroprene CR -20 C to +80 C Black (BK) High yield strength Resistance to radioactivity Ethylene UV-resistant, not moisture sensitive E/TFE -80 C to +170 C Blue (BU) UL94 V0 Good chemical resistance to: Tetrafluoroethylene acids, bases, oxidizing agents Limited brittleness sensitivity -40 C to +90 C, Natural Flexible at low temperature Polyacetal POM UL94 HB Not moisture sensitive (+110 C, 500 h) (NA) Robust on impacts Bio-plastic, derived from vegetable oil Strong impact resistance at low -40 C to +85 C, temperature Polyamide 11 PA11 Black (BK) UL94 HB Very low moisture absorption (+105 C, 500 h) Weather-resistant Good chemical resistance Good chemical resistance to: -40 C to +85 C, Polyamide 12 PA12 Black (BK) UL94 HB acids, bases, oxidizing agents (+105 C, 500 h) UV-resistant -40 C to +150 C Natural Resistance to high temperatures Polyamide 4.6 PA46 (5000 h), +195 C (NA), UL94 V2 Very moisture sensitive Low smoke sensitive (500 h) Grey (GY) Polyamide 6 PA6 -40 C to +80 C Black (BK) UL94 V2 High yield strength Polyamide 6, Limited brittleness sensitivity PA6HIR -40 C to +80 C Black (BK) UL94 HB Higher flexibility at low temperature high impact modified Black (BK), -40 C to +85 C, Polyamide 6.6 PA66 Natural UL94 V2 High yield strength (+105 C, 500 h) (NA) Polyamide 6.6, PA66GF13, Good resistance to: lubricants, vehicle -40 C to +105 C Black (BK) UL94 HB fuel, salt water and many solvents glass-fibre reinforced PA66GF15 High yield strength Polyamide 6.6, PA66HSW -40 C to +105 C Black (BK) UL94 V2 Modified elevated max. temperature heat and UV stabilised UV-resistant Black (BK), High yield strength Polyamide 6.6, PA66HS -40 C to +105 C Natural UL94 V2 Modified elevated heat stabilised max. temperature (NA) Limited brittleness sensitivity Polyamide 6.6, -40 C to +80 C, PA66HIR Black (BK) UL94 HB Higher flexibility at low high impact modified (+105 C, 500 h) temperature Limited brittleness sensitivity Polyamide 6.6, Higher flexibility at low temperature high impact modified, heat PA66HIRHSW -40 C to +110 C Black (BK) UL94 HB Modified elevated max. temper ature and UV stabilised High yield strength, UV-resistant Polyamide 6.6, Limited brittleness sensitivity high impact modified, heat PA66HIRHS -40 C to +105 C Black (BK) UL94 HB Higher flexibility at low temperature Modified elevated max. temperature stabilised Polyamide 6.6, -40 C to +80 C, Limited brittleness sensitivity high impact modified, scan PA66HIR(S) Black (BK) UL94 HB Higher flexibility at low temperature (+105 C, 500 h) black Polyamide 6.6, -40 C to +85 C, High yield strength PA66W Black (BK) UL94 V2 UV-resistant UV-resistant (+105 C, 500 h) Tefzel is a registered trademark of DuPont. General linguistic usage for cable ties made from raw material E/TFE is Tefzel - **More colours on request. Tie. In additon to Tefzel from DuPont HellermannTyton is also using equivalent E/TFE raw material from other suppliers. * These details are only rough guide values. They should be regarded as a material specification and are no substitute for a suitability test. Please see our datasheets for further details. HF = Halogenfree LFH = Limited Fire Hazard RoHS = Restriction of Hazardous Substances 24 Further information at www.HellermannTyton.com/fixings Date of issue: October 2015
