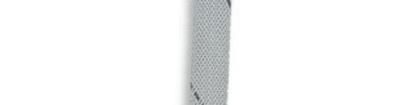

HellermannTyton DATA SHEET HEGPVO: Helagaine DESCRIPTION Helagaine is a range of lightweight, braided sleevings made from heat stabilised monofilament strands. HEGPV0 has good resistance to chemical attack and meets NF fire performance test. Helagaine is also available in PA66 (HEGPA66) and Polyester (HEGP) versions. APPLICATION The expandable design means that HEGV0 can be easily placed over cable bundles, providing excellent physical protection. Each size can cover a wide range of cable bundle diameters. PROPERTIES Properties Typical Results Test Method Material PBT Continuous Operating Temp -50C to +150C IEC 216 Intermittent Temp +200C Resistance Solvent - Good Flame Retardancy V0 UL94 Fume Toxicity 37% NF X 70-100 NF X 10-702 Oxygen Index 33.3% ISO 4589-2 NF EN 60695-2-11 Colours Black / Grey STANDARDS Approved to: N/A Conforms to: NF F 16-101 Class F2, I2 Pennycross Close, Plymouth, Devon PL2 3NX, England Issue 3 02-2008 Telephone: +44 (0) 1752 701261 Fax: +44 (0) 1752 790058HellermannTyton DATA SHEET HEGPVO: Helagaine Qty per NOMINAL CABLE BUNDLE DIAMETERS (MM) UNS PART reel m min. max. 170-30300 HEGPV0 03 2 5 100 170-30400 HEGPV0 04 3 7 100 170-30500 HEGPV0 05 4 9 100 170-30600 HEGPV0 06 5 11 100 170-30800 HEGPV0 08 7 13 100 170-31000 HEGPV0 10 9 15 50 170-31200 HEGPV0 12 11 17 50 170-31501 HEGPV0 15 13 20 50 170-32000 HEGPV0 20 18 25 50 170-32500 HEGPV0 25 22 30 50 170-33000 HEGPV0 30 27 40 50 170-34000 HEGPV0 40 35 50 50 170-35000 HEGPV0 50 40 60 50 Pennycross Close, Plymouth, Devon PL2 3NX, England Issue 3 02-2008 Telephone: +44 (0) 1752 701261 Fax: +44 (0) 1752 790058
