22054 Helukabel

Name: 22054
Brand: Helukabel
SKU: 22054_Helukabel
Availability: InStock
Rating: 5 (11 reviews)

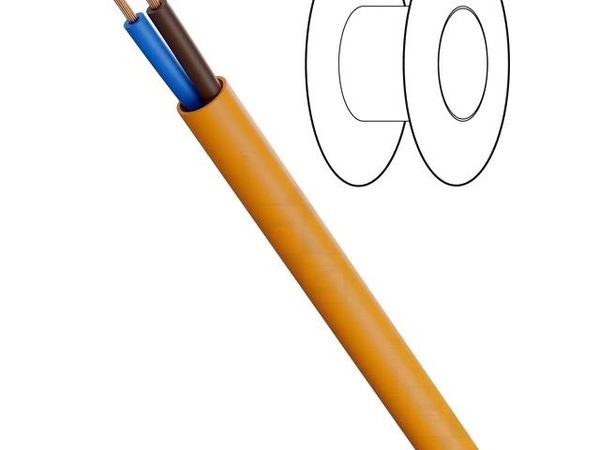

Images are for reference only
See Product Specifications

Part No.	22054
Manufacturer:	Helukabel
Category:	Ribbon Cables / IDC Cables
Description:	Wire; H05BQ-F; 2x1mm2; unshielded; 300V,500V; Cu; stranded; orange
Datasheet:	22054 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 5.264 ea
Line Total: USD 5.26

Availability - 297
Ship by Tue. 31 Dec to Thu. 02 Jan

MOQ: 1 Multiples: 1
Pack Size: 1

22054 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

297

Ship by Tue. 31 Dec to Thu. 02 Jan

MOQ : 1
Multiples : 1

1 : USD 5.264
6 : USD 3.052
16 : USD 2.884

Specifications

Manufacturer
Helukabel Helukabel

Product Category
Ribbon Cables / IDC Cables Ribbon Cables / IDC Cables

Voltage Rating
500 V , 300 V 500 V , 300 V

Kind Of Core
Cu Cu

Core Structure
stranded stranded

Insulation Colour
orange orange

Number Of Cores
2 2

Type Of Wire
mains mains

Resistance To
to weather conditions , most of oils , UV rays , water , mechanical stesses , gasoline to weather conditions , most of oils , UV rays , water , mechanical stesses , gasoline

Core Marking
colours without colour repetition colours without colour repetition

Max. Wire Diameter
8 mm 8 mm

Kind Of Wire
H05BQ - F H05BQ - F

Conforms
H05BQ - F H05BQ - F

Cable Application
industrial tools, elements of agricultural machinery industrial tools, elements of agricultural machinery

Wire Insulation Material
PUR PUR

Shield Structure
unshielded unshielded

Earth Core
none none

Cpr Standard
no classification no classification

Operating Temperature
- 50 To 90 C - 50 To 90 C

Flexibility Class
5 5

Core Section
1mm² 1mm²

Notes:- Show Stocked Products With Similar Attributes.
