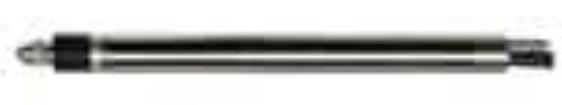

Model PLVX AC-AC Enhanced Precision Displacement Transducer DESCRIPTION steel constructed and windings are magnetically shielded. Ultra Model PLVX displacement transducer is designed for single and Precision LVDTs utilize spring loaded captive guided armatures multi-point industrial gaging applications and micro-displace- and low friction, non-rotating probes. Non-linearity is 0.25 % full ment measurements in research and scientific studies. It incor - scale. The Model PLVX with a 0.02 in stroke range has a me- porates non-rotating armatures to increase resistance to side chanical zero adjustment to correct pre- and over-travel. loads and improve repeatability. Bodies and probes are stainless FEATURES Miniature design 0.25 % non-linearity Rugged, enhanced accuracy Enhanced immunity to electrical noise 0.02 in to 0.2 in range -58 F to 257 F operating range (standard) Non-rotating probe Stainless steel construction Extended life cycle Infinite resolution Captive guided spring return armature Not RoHS compliantModel PLVX AC-AC RANGE CODES PERFORMANCE SPECIFICATIONS Characteristic Measure Range Code Available ranges 0,51 mm 0.02 in Stroke range 0,51 mm to 5,08 mm 0.02 in to 0.20 HI in HK 1,02 mm 0.04 in Non-linearity (max.) 0.25 % full scale 2,54 mm 0.10 in HM Non-repeatability (max.) 6 microinches HN 5,08 mm 0.20 in Output sensitivity See table Output load (min.) 100000 ohm Resolution Infinite OPTION CODES Phase shift <10 5 kHz Many range/option combinations are available in Range Code our quick-ship and fast-track manufacture pro- grams. Please see
