HEL-717-U-0-24-00 Honeywell

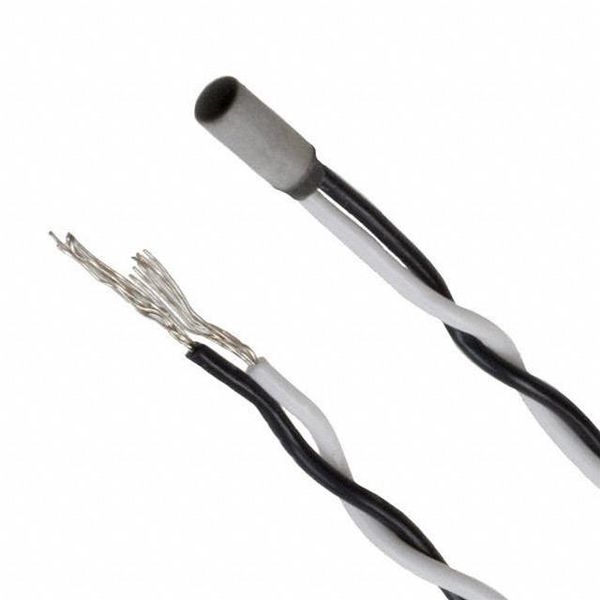

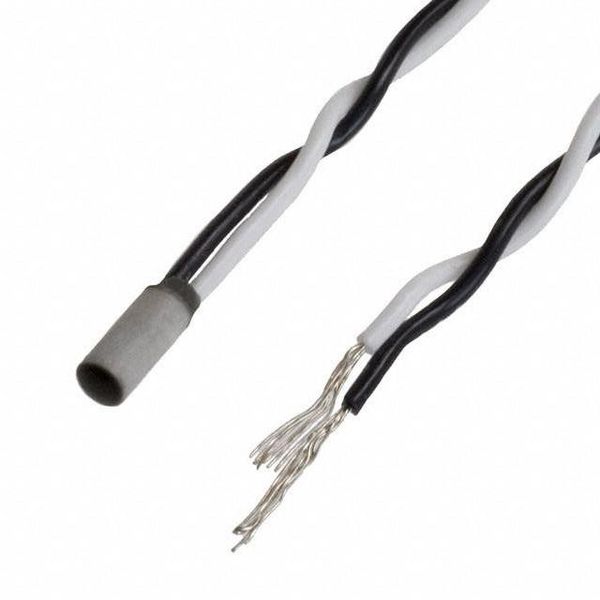

Thin Film Platinum RTDs HEL-700 Series DatasheetThin Film Platinum RTDs The HEL-700 Series Thin Film Platinum RTDs (Resistance Temperature Detectors) are designed to monitor or control critical temperatures in industrial applications. They provide a linear change in resistance versus temperature, combining high linearity, stability, accuracy, and wide temperature range in a small, fast-response package. The HEL-700 Series is designed to measure temperatures from -75 C to 540 C -100 F to 1000 F with high accuracy. These fully-assembled elements are ready-to-use in probe assemblies, without the need for fragile splices to extension leads. These products are manufactured using a thin layer of platinum deposited on an alumina substrate and are laser trimmed to a resistance interchangeability of a standard 0.2% (0.5 C accuracy) or optional 0.1% (0.3 C accuracy). The sensor chip is then glassed, wired and potted or ceramic fired to result in a cylindrical alumina package with either TFE Teflon - or fiberglass-insulated lead wires. Key Features Pote ntial A pplic ations W ide temperature range Temperature sensing for monitoring, compensation and regulation in: Interchangeable InduStrIaL Accurate HVAC equipment Linear resistance vs temperature Instrument and probe assemblies Fast response Process control Laser trimmed Motor windings and bearings Ceramic case material Battery packs TFE Teflon or fiberglass leadwires Environmental chambers Multiple small sizes Ovens and kilns Ready-to-use, fully assembled elements Drill holes in large objects MEdICaL Autoclaves aErOSP aCE/dEFEnSE Aircraft Space vehicles Wide temperature range interCHangeaBLe aCCurate sensing.honeywell.com 2
