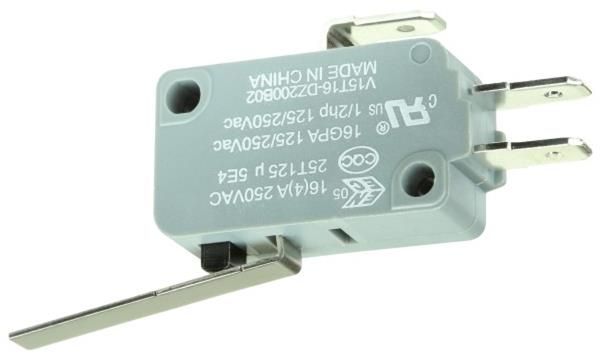

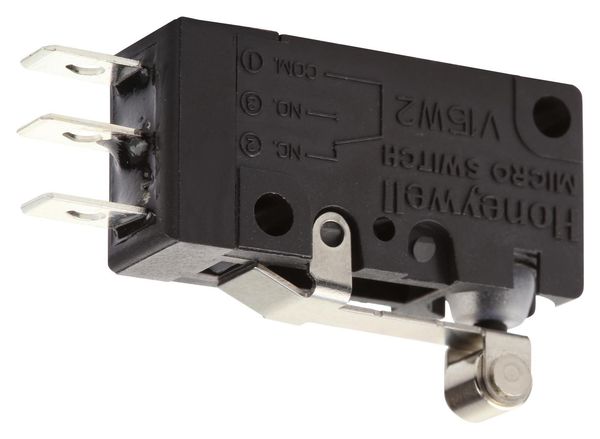

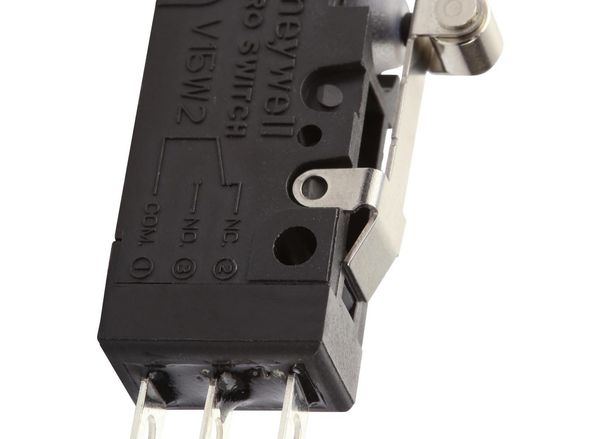

004945 Issue 11 V15 SERIES MICRO SWITCH Standard Miniature Basic Switches DESCRIPTION VALUE TO CUSTOMERS Honeywells MICRO SWITCH V-Basic Wide choice of electrical ratings: 0.1 A, Standard Switch, V15 Series is an 5 A, 10 A, 16 A, 22 A, 26 A electromechanical switch designed to Certified for global use: UL/cUL, ENEC, provide outstanding value in a reliable CQC global package. This switch is often ideal Available with pin plungers or integral for low-cost-of-failure applications, levers to meet multiple application and where the cost is minimal to replace equipment requirements or service any failure related to the switch. With a wide variety of operating APPLICATIONS FEATURES forces, and amperage ratings, the V15 Appliances Broad range of electrical loads: is designed for numerous types of Furnaces 0.1 A, 5 A, 10 A, 16 A, 22 A, 26 A applications. Gaming machines Long service life: over one million Ice makers mechanical operations Available in both pin plunger and levered Power washers Gold contacts are also available for styles, the V15 Series also offers a Vending machines controlling logic level/low energy multitude of termination styles to fit circuits almost any application. World-wide package size acceptance UL/CSA, cUL, ENEC, and CQC DIFFERENTIATION approvals Choice of actuation, termination, and Variants with cadmium-free contacts operating characteristics that can available allow for flexibility in numerous types of applications With a broad current capacity, one switch package can control a wide range of electrical loads PORTFOLIO Honeywell offers a wide range of MICRO SWITCH basic switches. These include the large basic switches, V Series basic switches, miniature basic switches, watertight switches and special duty basic switches. To view the entire product portfolio, click here. MICRO SWITCH STANDARD BASIC SWITCHES, V15 SERIES TABLE 1. SPECIFICATIONS CHARACTERISTIC PARAMETER Circuitry SPDT, SPNO, SPNC Operating force 0,15 N to 3,92 N 15g to 400 g quick connect 6,35 mm x 0,80 mm 0.250 in x 0.032 in quick connect 4,80 mm x 0,80 mm 0.187 in x 0.032 in Termination quick connect 4,80 mm x 0,50 mm 0.187 in x 0.020 in push-in terminals RAST-5 250 RAST-7 250 short solder slot-hole solder solder right side PCB left side PCB straight PCB screw oblique screw Actuators pin plunger, integral lever options Agency certification ENEC, CQC, UL, cUL code S: -25 C to 85 C -13 F to 185 F Operating temperature code T: -25 C to 125 C -13 F to 257 F (manufacturer specified) code H: -25 C to 150 C -13 F to 302 F Humidity Validated to 240 hours at 40C 40F , 95 %RH Mechanical life (cycles) 1 million cycles (except for 200g versions of V15S05 and V15T10 which are 500,000 cycles) Contact material silver, gold-plated cadmium-free option available PBT thermoplastic polyester (standard) Housing material PET thermoplastic polyester (V15H high temperature, 150 C 302 F ) TABLE 2. ELECTRICAL RATINGS RATING/ UL/CUL (CUL 61058-1, FILE 12252) ENEC (IEC 61058-1) EUROPE NOMENCLATURE CODE AMERICAS CQC (GB15092-1) ASIA-PACIFIC 5 GPA 125/250 Vac 0.1 GPA 125/250 Vac 0.1 A 125/250 Vac 0.1 A 48 Vdc 1/10 HP 125/250 Vac 05 5 (2.5) A 125/250 Vac 0.1 RA 48 Vdc 50,000 cycles 10,000 cycles 10 GPA 125/250 Vac 1/2 HP 125/250 Vac H10 n/a 1.0 RA 30 Vdc 100,000 cycles 11 GPA 125/250 Vac 1/3 HP 125/250 Vac 0.5 A 125 Vdc 0.25 A 250 Vdc T10 0.5 RA 125 Vdc 10 (3) A 125/250 Vac 0.25 RA 250 Vdc 50,000 cycles 10,000 cycles 11 (3) 125/250 Vac 11 (3) 125/250 Vac S11 50,000 cycles 50,000 cycles (ENEC only) 16 GPA 125/250 Vac 16 (4) A 250 Vac 16 1/2 HP 125/250 Vac 50,000 cycles 10,000 cycles 22 GPA 125/250 Vac 22 (8) A 250 Vac 22 1 HP 125/250 Vac 50,000 cycles 10,000 cycles 50,000 cycles (cadmium-free variants) 0.02 A 250 Vac 26 n/a 26 (10) A 250 Vac 50,000 cycles RA = Resistive Amps (Resistive Load) XX (Y) = XX max. resistive value (Amps) and (Y) GPA = General Purpose Amps (Inductive Load, max. inductive value (Amps) 75 % to 80 % power factor) VL = Lamp Load 2 sensing.honeywell.com
