X-On Electronics has gained recognition as a prominent supplier of HFD2/024-M(555) General Purpose Relays across the USA, India, Europe, Australia, and various other global locations. HFD2/024-M(555) General Purpose Relays are a product manufactured by Hongfa. We provide cost-effective solutions for General Purpose Relays, ensuring timely deliveries around the world.

HFD2/024-M(555) Hongfa

Name: HFD2/024-M(555)
Brand: Hongfa
SKU: HFD2024M555_Hongfa
Availability: InStock
Rating: 5 (11 reviews)

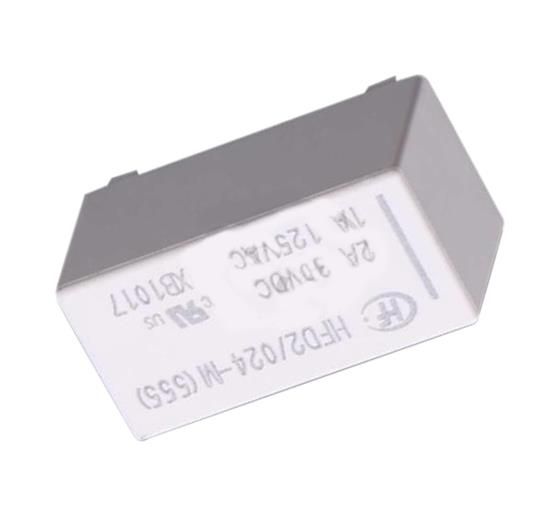

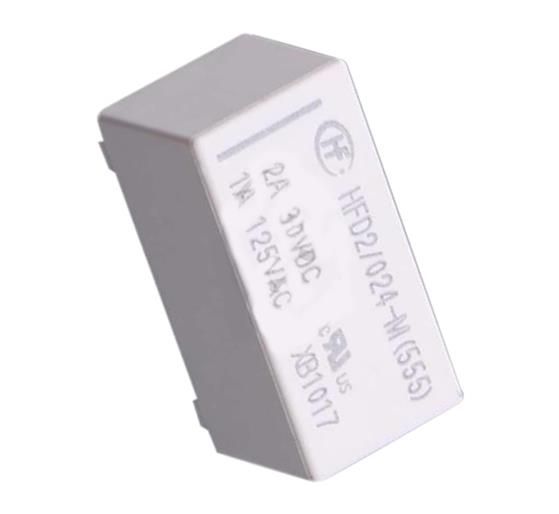

HFD2/024-M(555) electronic component of Hongfa

Images are for reference only
See Product Specifications

Part No.	HFD2/024-M(555)
Manufacturer:	Hongfa
Category:	General Purpose Relays
Description:	24V DPDT (2 Form C) 8 DIP,10.2x20.2mm Power Relays ROHS
Datasheet:	HFD2/024-M(555) Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 2.2742 ea
Line Total: USD 2.27

Availability - 285
Ship by Fri. 25 Jul to Wed. 30 Jul

MOQ: 1 Multiples: 1
Pack Size: 1

HFD2/024-M(555) More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

285

Ship by Fri. 25 Jul to Wed. 30 Jul

MOQ : 1
Multiples : 1

1 : USD 2.2742
10 : USD 1.8342
25 : USD 1.1952
100 : USD 0.8928

Specifications

Manufacturer

Hongfa Hongfa

Product Category

General Purpose Relays General Purpose Relays

Coil Voltage

24 V 24 V

Contact Form

DPDT (2 Form C) DPDT (2 Form C)

Coil Type

Polaried Relay - Single Coil Polaried Relay - Single Coil

Coil Resistance

2880 Ohms 2880 Ohms

Package

DIP , 10.2X20.2 mm DIP , 10.2X20.2 mm

Rohs

y y

Contact Resistance

100 mOhms 100 mOhms

Release Time

3.5ms 3.5ms

Operate Time

4.5ms 4.5ms

Maximum Switching Voltage

250 V @AC;220 V @DC 250 V @AC;220 V @DC

Maximum Switching Current

3 A 3 A

Contact Rating

1A@125VAC;3A@30VDC 1A@125VAC;3A@30VDC

Operating Temperature

- 40 C ~ + 85 C - 40 C ~ + 85 C

Pin Number

8 8

Notes:- Show Stocked Products With Similar Attributes.
