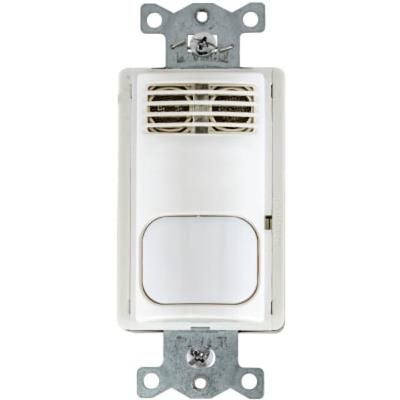

Mario Newark Submittal Table of Contents SKU Asset Type Page AD2000W1N Specification Sheet 2 AU2000BK1N Specification Sheet 3H-MOSS Controls Adaptive Dual Technology Wall Switches Features Dual technology sensing combines the individual advantages of passive infrared and ultrasonic detection No neutral required Built in photocell with manual super saver mode for daylight harvesting Impact resistant hard lens is standard and color matched to the switch Ordering Information Description Device Color UPC Number Catalog Number Dual (ultrasonic and White AD2000W1N passive infrared), Auto control with no button Listings cULus Listed Meets ASHRAE 90.1 CEC Title 24 Certified Specifications Housing High impact plastic (UL-94-5V) Mounting Strap Plated steel Lens Dual element pyrometer and 12 element cylindrical hard lens Sensing Indicator Passive Infrared, Red LED. Ultrasonic, Green LED. Performance Electrical Load Capacity Incandescent - 0 to 800 watts, 120V AC Ballast - 0 to 1000 watts, 277V AC Ballast 0 to 1800 watts Power Supply 120/277V AC, 50/60Hz Mechanical Wire Leads 18 AWG stranded wire, 6 long with stripped ends Environmental Operating Temperature 32F to 104F (0C to 40C) 0% to 95% non-condensing relative humidity Controls Ambient Light Adjustable ambient light override, 10 to 500 foot candles Sensitivity Adaptive 0% to 100% Time Delay Digital, adaptive 4 to 30 minutes Coverage Pattern Complementary Products Area 1000 square foot. Area of coverage based on passive Wallplate NP26W, SS26, RCW1W infrared technology minor motion pattern. See illustration. Mounting Height 42 to 54 inches above floor Online Resources Customer Use Drawing eCatalog Installation Instructions Dimensions in Inches (mm) Hubbell Wiring Device-Kellems Hubbell Incorporated (Delaware) 40 Waterview Drive Shelton, CT 06484 Phone (800) 288-6000 Fax (800) 255-1031 Specifications subject to change without notice.
