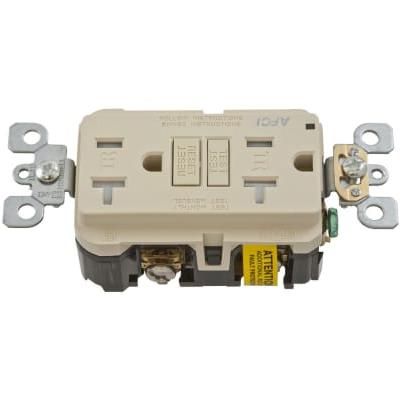

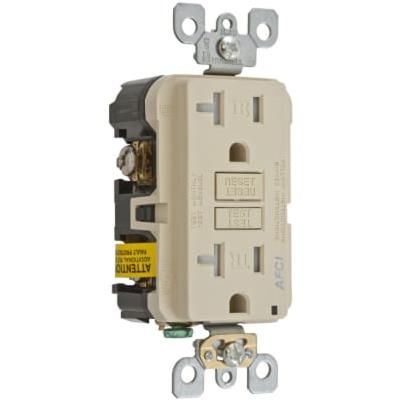

AFR20TRI Hubbell

Hubbell Arc Fault Receptacles Wiring Device-Kellems For Commercial and Residential Applications Meets the Latest National Electric Code Requirements for Arc Fault Circuit Interruption Helps to Protect Against Electrical Fires TR Originating from Arcing Faults Where is AFCI Protection Required by the NEC Bedroom Family Room Dining Room Living Room Closet Parlor Library Laundry Areas Kitchen Sunroom Rec Room Den Why is it Needed Yearly Electrical Incidents What are Typical Causes of Arc Faults > 47,000 Fires Damaged Wiring > 400 Deaths Pinched Cord > 1,600 Injuries Broken Plugs > 1.4B in Damages Overheating Loose Connections Aged/Worn Conductors Housing Hotel University Dorm Healthcare Facility Residential www.hubbell-wiring.com Hubbell Arc Fault Receptacles Wiring Device-Kellems For Commercial and Residential Applications ORDERING INFORMATION Description Color 15 Amp 20 Amp Outlet Branch Circuit Black AFR15TRBK AFR20TRBK Arc Fault Receptacle with Brown AFR15TR AFR20TR Tamper-Resistant Outlets Gray AFR15TRGY AFR20TRGY 20A 125V Feed Through Ivory AFR15TRI AFR20TRI and LED Indicator Light Almond AFR15TRLA AFR20TRLA White AFR15TRW AFR20TRW Outlet Branch Circuit AFCI Ivory AFR20BFI Blank Face - LED Indicator White AFR20BFW NATIONAL ELECTRIC CODE 2011 NEC 210.12(A) Where required all 15A or 20A 120V branch circuits in dwelling units that supply outlets to family rooms, dining rooms, living rooms, parlors, libraries, dens, bedrooms, sunrooms, recreation rooms, closets, hallways or similar areas must be protected by a listed AFCI device of the combination type. There are (2) exceptions noted below: (1) AFCI can be branch circuit type located at the first outlet if circuit conductors installed in RMC, IMC, EMT or Type MC or steel armored Type AC cable and AFCI device is contained in a metal outlet or box. (2) Where a listed metal or nonmetallic conduit or tubing is encased in not less than 2 inches of concrete for the portion of the branch circuit between the branch-circuit overcurrent device and the first outlet, an outlet branch-circuit AFCI at the first outlet is permitted to provide protection for the remaining portion of the branch circuit. (B) Branch circuit extensions or modifications dwelling units. Where branch-circuit wiring is modified, replaced, or extended in any of the areas specified in 210.12(A), the branch circuit must be protected by a listed combination AFCI located at the origin of the branch circuit or a a listed outlet branch circuit AFCI located at the first receptacle outlet of the existing branch circuit 2014 NEC 406.4(D) Requirements for replacement receptacles where a receptacle outlet is supplied by a branch circuit that requires arc-fault circuit interrupter protection 210.12(A) , a replacement receptacle at this outlet must be one of the following: (1) A listed outlet branch circuit type arc-fault circuit interrupter receptacle (2) A receptacle protected by a listed outlet branch circuit code arc-fault circuit interrupter code receptacle (3) A receptacle protected by a listed combination type arc-fault circuit interrupter type circuit breaker. SPECIFICATIONS Ratings Certifications Construction Amperage 15 Amp/20 Amp UL 1699A E366570 Termination Back and Side Feed-thru 20 Amp Protection UL 498 Receptacle Terminal 14-10 AWG Voltage 120V AC (+10% to15%) UL Fed Spec WC-596 Grounding Self-Grounding Clip (102V to 132V) CSA Standard C22.2 No. 42 Indicators Power & Rev Wire Horsepower (1) Rated Voltage CSA Tech Letter No. M-02A Configuration 2 Pole, 3 Wire Flammability Rated V2 per UL 94 NEMA WD-6 NEMA 5-15R, 5-20R Operating (-35C to 66C) or Tamper Resistant Temperature (-30F to 150F) TR NEC 406.11 210.52 All 15 & 20A 125V, Receptacles shall be listed Tamper-Resistant for dwelling installations. The Hubbell AFR series meets all requirements for an outlet branch-circuit type AFCI protects branch circuit wiring and extensions to branches such including appliances and cord sets. DIMENSIONS 1.31 1.31 15 Amp 20 Amp (33.3) (33.3) 1.29 1.29 1.29 (32.8) (32.8) (32.8) 4.21 4.21 3.81 3.81 (106.9) (106.9) (96.8) (96.8) 3.28 2.60 3.28 2.60 (83.3) (66.0) (83.3) (66.0) 1.07 1.07 1.07 (27.2) (27.2) (27.2) 1.68 1.35 1.43 1.68 1.35 (42.7) (34.3) (36.3) (42.7) (34.3) www.hubbell-wiring.com Wiring Device-Kellems Hubbell Wiring Device-Kellems Hubbell Incorporated (Delaware) 40 Waterview Drive Shelton, CT 06484 Phone (800) 288-6000 FAX (800) 255-1031 Printed in U.S.A. Specifications subject to change without notice. WLFSB003 3/14
