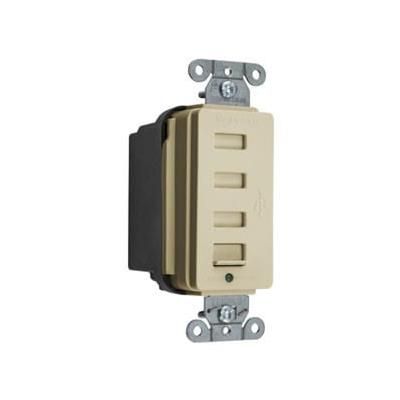

HUBBELL WIRING DEVICE-KELLEMS HUBBELL USB Charger 4 Port Outlet More Power - Charge Faster 5 Amps of USB Capacity Charge Multiple Smart Devices Simultaneously 4 Stainless Steel Ports More Capacity Rated for 10,000 insertions and removals Green Power Enabled Port Door Switch Shuts Off Power When Not-in-Use FEATURES Four USB ports 5 Amp, 5V DC, type A, class 2.0 Switch activated port door when opened delivers power, when closed shuts off power Green LED indicator to show USB power available Heavy duty stainless steel USB ports rated for 10,000 cord insertions and removals Hubbells USB 4 Port Charger provides USB power in a Solid or stranded wire use: standard single gang electrical opening. Designed to provide - Hot + Neutral: back wire compression clamp maximum charging for personal electronics, the USB ports are - Ground: back or side wire capable of delivering a total of 5 amps to multiple electronics simultaneously. The outlet features a USB port door, which when SPECIFICATIONS opened enables power, when closed all power is switched off. This eliminates all current flow for a zero no load draw. USB 5 Amp, 5V DC Buildings looking to provide 100% green efficiency in power Input voltage: 125V AC, 60Hz delivery will maximize LEED and energy design. Zero no load power consumption when not-in-use Circuit feed-through 20 Amp, 125 Volt 14-10 AWG gauge wire terminals APPLICATIONS Dielectric withstand: 1500V AC for 1 minute Ideal for use in new construction and renovation to add capacity Operating temperature: maximum continuous 75 C for USB charging. Especially suited for use in universities, minimum -40 C (without impact) dormitories, hotels, hospitals, medical labs, restaurants, airports, Meets UL94 for 5V flammability rating classrooms and homes. Complies with battery charging specification USB BC1.2 Designed for use with: Compatible with USB 1.1/2.0/3.0 devices, including Apple Products Tablet computers Apple products iPad Smart Phones Complies with Part 15 of the FCC rules iPod Mobile Phones cETLus to UL 1310 iPhone MP3 Players Digital Readers GPS Smart Watches Other USB compatible products USB fans, lights and accessories Apple, iPad, iPod and iPhone are registered trademarks of Apple Inc. www.hubbell-wiring.com .27 (6.8) 1.75 (44.5) 1.29 (32.8) 3.28 2.62 3.81 4.12 HUBBELL WIRING DEVICE-KELLEMS (83.3) (66.5) (96.8) (104.6) ORDERING INFORMATION 1.82 (46.1) USB 4 PORT OUTLET Description Color Catalog Number USB Charger 4 Port Outlet, Black USB4BK Four USB Type 2.0 Ports, Brown USB4 2.00 1.31 5 Amp, 5 Volt DC, Gray USB4GY (50.7) (33.3) Style Line Decorator Ivory USB4I Light Almond USB4LA White USB4W .30 (7.6) Energy Information 120V AC Energy consumed when USBs are not in use Energy consumed when USBs are fully used Input Power No Load Current 0 Full Load Current 0.46A 1.75 (44.5) No Load Watts 0 Full Load Watts 29.3W 1.29 (32.8) 3.28 2.62 3.81 4.12 (83.3) (66.5) (96.8) (104.6) This outlet is capable of delivering up to 5 amps 5V DC of USB power. If multiple smart devices are plugged in the individual ports will allocate power as determined by the smart devices. 1.63 1.84 (41.3) (46.6) Suitable for use on circuits with AFCI and GFCI protection. 1.54 1.31 (39.1) (33.3) DIMENSIONS Inches (mm) .27 (6.8) 1.72 (43.8) 3.28 2.62 3.81 4.12 (83.3) (66.5) (96.8) (104.6) 1.81 (46.0) 1.72 2.09 1.31 (43.8) (53.1) (33.3) Note: For use with boxes deeper than 1.5 with internal AC/MC clamps. www.hubbell-wiring.com Wiring Device-Kellems Hubbell Wiring Device-Kellems Hubbell Incorporated (Delaware) 40 Waterview Drive Shelton, CT 06484 Phone (800) 288-6000 FAX (800) 255-1031 Printed in U.S.A. Specifications subject to change without notice. WLDSB005 3/14
