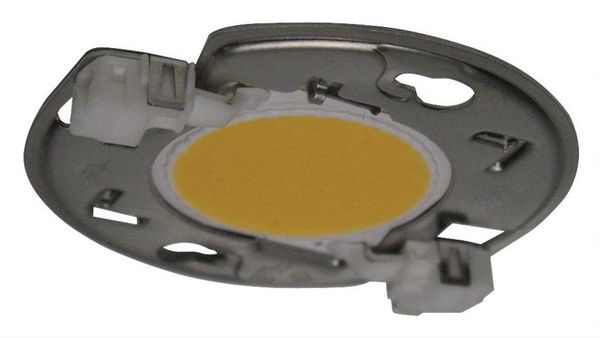

TM MODEL 50-23 CHIP-LOK COB ARRAY HOLDER FEATURES/BENEFITS: -METAL HOLDER BASE IS RESISTANT TO CREEP TO PREVENT THERMAL AND ELECTRICAL ISSUES TYPICAL AT ELEVATED OPERATING TEMPERATURES OVER TIME -COB HOLDING ARM SECURES ARRAY TO HOLDER FOR EASE OF INSTALLATION - KEYWAYS ALLOW FOR PRE-INSTALLATION OF SCREWS TO EASE ASSEMBLY AND MINIMIZE DAMAGE TO PHOSPHOR -TOUCH-SAFE DESIGN IS UL RECOGNIZED FOR 250V TO ALLOW USE IN DAISY CHAINED APPLICATIONS -STAINLESS STEEL BODY PROVIDES ADDITIONAL HEAT SINKING PATHS TO ALLOW ARRAY TO RUN COOLER COMPARED WITH SCREWS AND PLASTIC HOLDERS. ELECTRICAL: MECHANICAL: VOLTAGE: 250 V MAX DIAMETER: 2.56 in (65.0 mm) HEIGHT: 0.27 in (6.98 mm) MAX CURRENT: 4 A MAX WEIGHT: 0.39 oz (10.3 grams) SCREW SIZE: 5-40 (M3) SCREW TORQUE 5 in-lb( 0.5 Nm) MAX SCREW CIRCLE DIA: 1.97 in (50.0 mm) WIRE STRIP LENGTH: 1/4 -5/16 (7 mm) PHYSICAL: STANDARDS & SPECIFICATIONS: BASE PLATE: 301 SS RECOGNIZED COMPONENT UL 496 (US/CANADA) CONTACT HOUSING: THERMOPLASTIC EIA -364-1000 (THERMAL CYCLING) ELECTRICAL CONTACTS: COPPER ALLOY EIA-364-31 (THERMAL SHOCK & HUMIDITY) PLATING: EIA-364-17 (ELEVATED TEMPERATURE - LIFE) SILVER OVER NICKEL o TEMPERATURE: UL 2459 (CURRENT CYCLING - TEMP RISE 110 C IEC 60068-2-7 (VIBRATION) RoHS AND REACH COMPLIANT HALOGEN FREE, NON-CHLORINATED & NON- US & FOREIGN PATENTS PENDING BROMINATED FLAME RETARDANT WIRE RANGE: AWG (UL 496) METRIC SOLID 18-24 AWG 0,75 - 0,25 mm2 STRANDED 18-22 AWG 0,75 - 0,25 mm2 TIN BONDED 18-24 AWG 0,75 - 0,25 mm2 DIMENSIONS: ORDERING INFO: CATALOG MANUFACTURER COB ARRAY WEIGHT LBS (KG): CARTON QTY: 50-2303CR CREE CXA35 320 8.0 (3,6) FACTORY CONTACT: SALES CONTACT: ENGINEERED SOLUTIONS IDEAL INDUSTRIES, INC. 1375 PARK AVENUE SYCAMORE IL USA 60178 P: 1-800-324-9571 F: 1-888-222-6140 E: oem idealindustries.com REVISION: OCTOBER 2013X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for ideal manufacturer: Other Similar products are found below : 30-696 74-027 45-292 45-098 L-5361 45-093 45-177 45-1987-1 41-990 25HK-AY-090A266-DH 15DYS6150-2400625P 45-418 30-503 35-020 35-060 35-516 45-1633-1 45-170 45-1773-1 45-1774 45-1939-1 45-2133-1 45-298 45-372 K-6336 K-8906R L-4866 L-5210 L- 5562 L-9038 LB-1091 35-522 61-775 KB-0276R 30-429 30-587 33-856 45-672 45-171 45-144 34-015 33-864 30-506 25HK-AP- 060A100-CP-3A 15DYS624-240125W-K 15DYS6150-4800312P 33-704 45-092 45-121 45-1513
