16mm - L6 Series
Switches & Pilot Devices

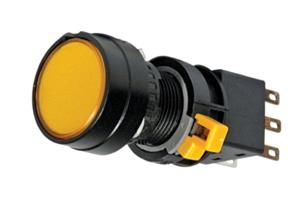

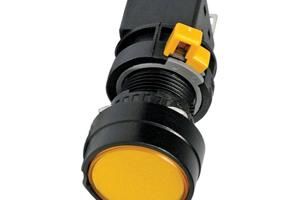

L6 (Oversize) Series Miniature Switches and Pilot Devices
Key features:
5/8 (16mm) mounting holes
Locking lever removable contact blocks
Solder terminal or PCB terminal options
Available assembled or as sub-components
Worldwide approvals
Incandescent or LED illumination
Snap action contacts
UL Recognized CSA Certified
File No. E55996 File No. LR21451
Registration No. R9551089 (E-stops)
Registration No. J9551458 (all other switches)
Registration No. R95650511 (Pilot Lights)
Conforming to Standards EN60947-1, EN60947-5-1, VDE0660-200, UL508, CSA C22-2 N0.14
Operation: 25 to +55C (without freezing), 45 to 85% RH
Operating Temperature
Storage: -30 to +80C (without freezing)
Vibration Resistance 5 to 55Hz, 1.0 peak-peak amplitude max
2
Operating limit: 100 m/sec (approximately 10G)
Shock Resistance
2
Damage limit: 1000 m/sec (approximately 100G)
Momentary pushbuttons 2,000,000 operations minimum
Mechanical Life
All others: 250,000 operations minimum
Degree of Protection IP65 (conforming to IEC 60529)
Switch unit: between live and ground: 2500 volt AC, 1 minute
between terminals of different poles: 2500 volt AC, 1 minute
Dielectric Strength
between terminals of same pole: 1000 volt AC, 1 minute
Illumination unit: between live part and ground: 2500 volt AC, 1 minute
Insulation Resistance 100M minimum (using 500V DC megger)
Rated Insulation Voltage 250V AC/DC
Gold Contacts (pcb): 3A
Rated Thermal Current
Silver Contacts (solder): 5A
Contact Resistance 50 maximum initial value
Silver Contacts Gold Clad Contacts
(Solder Terminals) (PCB terminals)
30V 125V 250V 30V 125V
Rated Operating Current
AC resistive 5A 2A AC inductive - 0.1A
AC inductive 2A 1.5A DC resistive 0.1A
DC resistive 3A 0.4A
DC inductive 1A 0.2A
Minimum Recommended Load (reference value for silver
5V AC/DC, 1mA
contacts)
Terminal Style 0.110 Solder Tab /PCB
Contact Form Snap Action, Double Throw
Contact Material Solder Tab: Pure Silver /PCB: Gold Plated Silver
Momentary pushbuttons: 100,000 operations minimum (1800 operations / hour)
Electrical Life (at full load)
All others: 100,000 operations minimum (1200 operations / hour)
5V DC LED: 8mA
6V AC/DC LED: 7mA 6V AC/DC incandescent: 100 mA
Lamp Current Draw 12V AC/DC LED: 8mA 12V AC/DC incandescent: 50 mA
24V AC/DC LED: 8mA 24V AC/DC incandescent: 25 mA
120V AC = 8mA
Lamp Life Incandescent: 2000 hours./LED 50,000 hours. (on pure DC, half-life intensity)
1705151131
800-262-IDEC (4332) USA & Canada
555
Lamp Ratings Contact Ratings16mm - L6 Series
Switches & Pilot Devices
Built-in LED Lamp Ratings
Model LFTD-5k LFTD-1k LFTD-2k LFTD-H2k
Lamp Base SX6S/8x5.4
Rated Voltage 5V DC 12V AC/DC 24V AC/DC 120V AC
Operating Voltage 5V DC 5% 12V AC/DC 10% 24V AC/DC 10% 120V AC 5%
AC 9mA 9mA 8mA
Current Draw
DC 8mA 8mA 8mA
Color Code k Specify a color code in place of k in the Part No: A (amber), G (green), R (red), S (blue), W (white), Y (yellow)
Lamp Base Color Same as illumination color
Voltage Marking Stamped on the lamp base
Life (reference value) Approx. 50,000 hours
A, R, W, Y A, R, W, Y
X1 X2
(+) ()
(+) ()
X1
Internal Circuit
G, S G, S
X1 X1
X2
X2
Non-Illuminated Pushbuttons (Assembled)
Non-Illuminated Pushbuttons
X2
Terminal Style
Style Operation Contact
Solder Tab PCB
Oversize Round SPDT HA1B-M2C5-j HA1B-M2C1V-j
Momentary
Extended
DPDT HA1B-M2C6-j HA1B-M2C2V-j
SPDT HA1B-A2C5-j HA1B-A2C1V-j
Maintained
DPDT HA1B-A2C6-j HA1B-A2C2V-j
SPDT HA2B-M1C5-j HA2B-M1C1V-j
Oversize Square Flush
Momentary
DPDT HA2B-M1C6-j HA2B-M1C2V-j
SPDT HA2B-A1C5-j HA2B-A1C1V-j
Maintained
DPDT HA2B-A1C6-j HA2B-A1C2V-j
Oversize Square SPDT HA2B-M2C5-j HA2B-M2C1V-j
Momentary
Extended
DPDT HA2B-M2C6-j HA2B-M2C2V-j
SPDT HA2B-A2C5-j HA2B-A2C1V-j
Maintained
DPDT HA2B-A2C6-j HA2B-A2C2V-j
SPDT HA1B-M3C5-j HA1B-M3C1V-j
jButton Color Codes
Mushroom
Momentary
Color Code Color Code
DPDT HA1B-M3C6-j HA1B-M3C2V-j
Black B Blue S
SPDT HA1B-A3C5-j HA1B-A3C1V-j
Green G White W
Maintained
DPDT HA1B-A3C6-j HA1B-A3C2V-j
Red R Yellow Y
1. In place of j specify Button Color Code from table.
2. Illuminated (translucent) style lenses also available, specify as such: instead of LA1B-M1C5-j use LA1B-M1C5L-k in place of k
(specify Lens Color Code from next page.)
3. PCB terminal models also available with silver contacts (change 1 or 2 to 5 or 6 respectively, ie LA1B-M1C1V-j becomes
LA1B-M1C5V-j).
