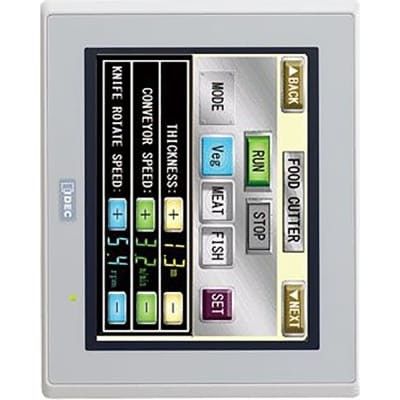

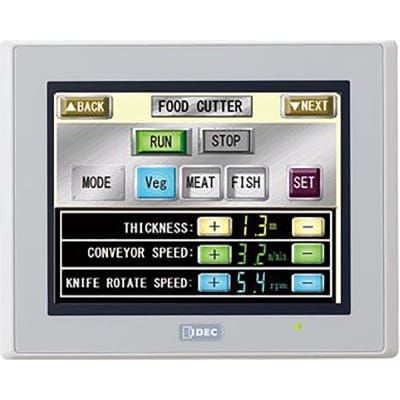

High Performance Touchscreens PRODUCT DESCRIPTION New Enhanced High Performance Series: 5.7 to 15 displays IDEC touchscreens are redefining Human Machine Interaction. Our new High Performance 5.7, 8.4, 10.4 and 12.1 HMIs offer upgraded features and with the addition of a new 15 model, users have options for applications on any size equipment. 2 Featuring up to 800 cd/m brightness, 1024 x 768 pixels high resolution displays, and over 100,000 hours of backlight life, they are the brightest, longest-lasting displays on the market. An exceptionally wide operating temperature range of -20C to +60C as well as IP66F, IP67F, Type 4X, 12, 13, ABS Type Approval, LR Type Approval, and Class I Div 2 approval ratings, assures reliable operation in the TOUCHSCREEN PART NUMBERS toughest environments. These touchscreens are built for endurance and are backed by an Display Screen Part Number Description industry leading three-year warranty. 15 15 inch Color TFT LCD display KEY FEATURES HG5G-VFXT22MF-B Black Bezel with multimedia function High Resolution Display: 1024 x 768 pixels (8.4 , 10.4 , 12.1 , 15 ), 640 x 480 pixels (5.7 ) Backlight life of 100,000 hours with up 12.1 2 to 800 cd/m brightness 12.1 inch Color TFT LCD display Wide range of Operating Temperature: HG4G-VCXT22MF-B Black Bezel with -20C to +60C multimedia function Multiple Protocols - up to 4 protocols simultaneously 10.4 10.4 inch Color TFT LCD display Remote Access, Monitor and Control HG3G-VAXT22MF-W Light Gray Bezel with Function multimedia function FTP, Email, Mobile App and Custom 10.4 inch Color TFT LCD display Web Page HG3G-VAXT22MF-B Black Bezel with multimedia function Audio and Video Interface (8.4 , 10.4 , 12.1 , 15 ) 8.4 8.4 inch Color TFT LCD display HG3G-V8XT22MF-W Light Gray Bezel with Supports Analog and Discrete I/O Expansion multimedia function Modules 8.4 inch Color TFT LCD display IP66F/67F, Type 4X, 12 and 13, Class I Div 2 HG3G-V8XT22MF-B Black Bezel with 3 Year Warranty multimedia function 5.7 5.7 inch Color TFT LCD display HG2G-V5FT22TF-W Light Gray Bezel 5.7 inch Color TFT LCD display HG2G-V5FT22TF-B Black Bezel ClassI Div2 Hazardous Location 1GENERAL SPECIFICATIONS 5.7 8.4 10.4 12.1 15 Model HG2G-V5FT22TF-B or W HG3G-V8XT22MF-B or W HG3G-VAXT22MF-B or W HG4G-VCXT22MF-B HG5G-VFXT22MF-B Rated Power 24V DC Voltage Power Voltage Range 20.4 to 28.8V DC 18W maximum 25W maximum 25W maximum Power 8W maximum when not using 15W maximum when not using 20W maximum when not using Consumption USB2 or EXT 4W maximum USB2 or EXT 7W maximum USB2 or EXT 7W maximum when Backlight OFF when Backlight OFF when Backlight OFF Allowable Momentary 10 ms maximum Power Interruption Inrush Current 30A maximum 1,000V AC, 10 mA, 1 minute Dielectric Strength between power and FG terminals Operating -20 to +60C (no freezing) Temperature Operating 10 to 90% RH (no condensation) Humidity Storage -20 to +70C (no freezing) Temperature Storage Humidity 10 to 90% RH (no condensation) Pollution Degree 2 2 Vibration 5 to 8.4 Hz amplitude 3.5 mm, 8.4 to 150 Hz acceleration 9.8 m/s Resistance 10 cycles (100 minutes) on each of three mutually perpendicular axes 2 147 m/s , 11 ms Shock Resistance 5 shocks on each of three mutually perpendicular axes Fast transient/burst test, + Power terminals: 2 kV, Noise Immunity + Communication line: 1 kV (IEC/EN61131-2) + + Electrostatic Contact 6 kV, air 8 kV Discharge (IEC/EN61131-2) Corrosion Immunity Free from corrosive gases Degree of IP66F/IP67F (IEC 60529) (front part when mounted) Type 4X, 12, and 13 Protection *1 Switching Element Analog resistive membrane Operating Force 3N maximum Mechanical Life 1,000,000 operations Sound Electronic buzzer Electronic buzzer or speaker output Acknowledgement Dimensions 167.2W x 134.7H x 54.4D mm 231W x 176H x 54.4D mm 270W x 212H x 52.7D mm 314W x 240H x 54.1D mm 364.5W x 291.5H x 54.8D mm Weight (approx.) 0.65 kg 1.25 kg 1.65 kg 2.1 kg 3.2 kg Safety Standards: UL61010-1, UL61010-2-201, UL12.12.01 CSA C22.2 No.61010-1-12 CSA C22.2 No.61010-2-201 Approvals CSA C22.2 No.213 Class I Div 2 Ship Classification Standards ABS Type Approval, LR Type Approval, NK, DNV, GL Do not use the touchscreen in an environment subject to strong ultaviolet rays, otherwise the LCD quality will deteriorate. *1 Protection degree of the front surface after mounting. Operation not guaranteed in certain environments. 2
