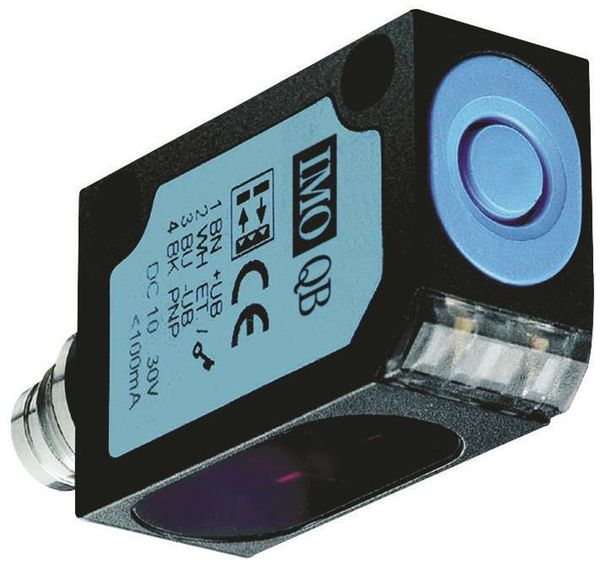

Y E A R G U Miniature DC Photoelectric Switches QB Miniature photoelectric switches for DC operation Models with IR, red light and red light LASER emission Red light emission for transparent object detection DigitalTeach I sensitivity adjustment Position sensor with analogue output Contrast detection model UL and CUL approved IP67 protection Options and ordering codes QB I 6 / 0 P - 0 E E M8 axial plug connection Infrared emission I Visible red LED emission R Red LASER diode emission L 0 0Plastic housing Diffuse 300mm with sensitivity adjustment (R) 6 P PNP logic output Background Suppression 60mm (L) A N NPN logic output Background Suppression 100mm (R) B O Emitter Background Suppression 110mm (L) C A Analogue 0-10V Background Suppression 150mm (I) D Background + Foreground Suppression (R) 3 0 Emitter or 4 wire, LOn/DOn selectable Diffuse Contrast (L) L Note: Some model combinations are not available, Fibre Optic (R) F please refer toAvailable model section of this Retro-reflective for clear material detection (R) G data sheet. Retro-reflective 1m (L) M Retro-reflective 2.5m (R) N Retro-reflective 4m (R) P Receiver 6m R Emitter (R) S Specification common to all models Operating voltage 10-30Vdc (QBR3 15-30Vdc) Load current 100mA (not emitters) Leakage current 10mA at Vmax (not emitters) Switching Frequency 1kHz Sensitivity adjustment Push button & External connection Red Light Emission 660 Nm, Pulsed Infrared Emission 880 Nm, Pulsed Laser Emission 650 Nm, Class II Current consumption See Model tables Indicators Yellow LED (Output), Green LED (signal strength) Supply electrical protection Polarity reversal and transient U = 500V imp Output electrical protection Short circuit (auto-reset) and over-voltage Protection IP67 (EN60529) Housing material ABS Storage temperature -20 to 80C Operating temperature -20 to 60C Weight 40g (approx) www.imopc.com A R A N T E EMiniature DC Photoelectric Switches QB continued Diffuse models Specification QBR6/0P-0E QBR6/0N-0E QBLL/0P-0E QBLL/0N-0E Sensing distance 300mm 150mm Light source Red LED 660nm Laser 650nm Class II Switching frequency (Hz) 1000 4000 Output type PNP NPN PNP NPN Output function N/O,N/C selectable Current consumption no load (mA) 35 25 Max. output current (mA) 100 Max. output voltage drop (V) 2.4 Time delay (ms) 300 Operating indicator LED green Output indicator LED red Light spot at 160mm 12 x 12mm <0.7mm Reference material Kodak White 90%, 100 x 100mm Background suppression models QBLA/0P-0E QBLA/0N-0E QBLC/0P-0E QBLC/0N-0E Sensing distance 60mm 110m Light source Laser 650nm Switching frequency (Hz) 1000 Output type PNP NPN PNP NPN Output function N/O,N/C selectable Current consumption no load (mA) < 30 Max. output current (mA) 100 LASER protection class II Light spot <0.3mm at 40mm 0.7mm at 85mm Max. Grey scale displacement (%) 7 Operating indicator LED green Output indicator LED red Reference material Kodak Grey 18%, 100 x 100mm Background suppression models QBID/0P-0E QBID/0N-0E QBRB/0P-0E QBRB/0N-0E QBR3/0A-0E Sensing distance 150mm 100mm 80mm Light source IR 880nm Red LED 660nm Switching frequency (Hz) 800 1000 200 Output type PNP NPN PNP NPN 0 - 10Vdc Output function N/O,N/C selectable Current consumption no load (mA) 25 35 25 Max. output current (mA) 100 - Max. output voltage drop (V) 2.4 - Max. Grey scale displacement (%) 10 - Operating indicator LED green Output indicator LED red Light spot 5 x 5mm at 60mm Reference material, 100mm x 100mm Kodak grey 18% Kodak White 90% www.imopc.com
