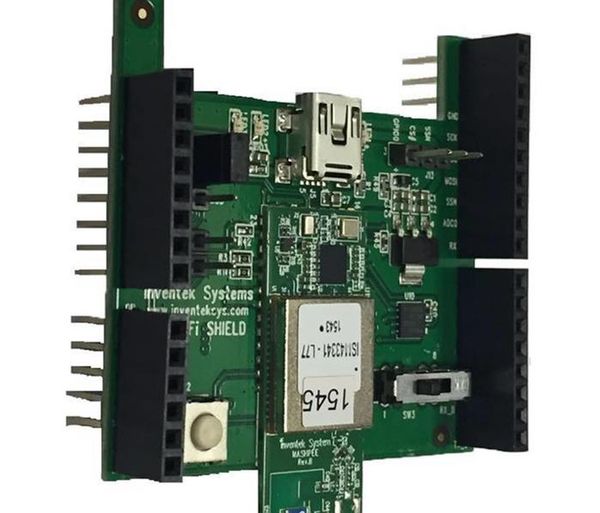

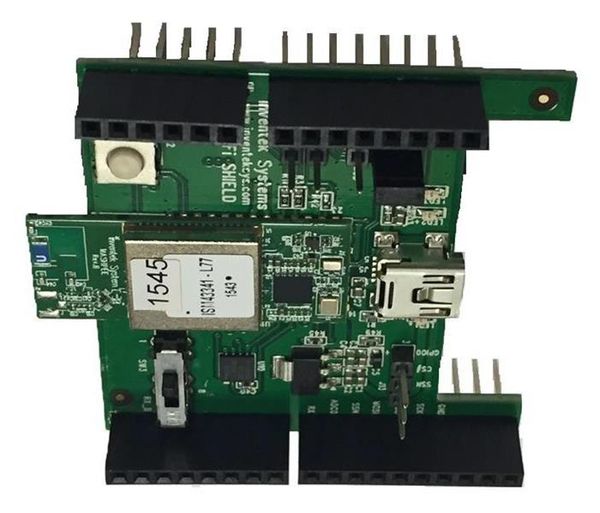

ISMART Product Brief ISMART Inventek Systems Module Arduino Test Product Brief Wi-Fi, BT/BLE & NFC IoT Arduino Shields DOC-PB-20108-1.1 www.Inventeksys.com Inventek Systems Page 1 ISMART Product Brief 1 General Description The Inventek ISMART (Inventek Systems Module Arduino Test) IoT platform is a user- friendly Arduino compliant shield suited for all of your wireless application needs. The ISMART platform enables customers to quickly launch IoT products based on a host MCU of your choice and Broadcoms Wi-Fi, BT/BLE and NFC combo radios. The robust user friendly Inventek AT command set FW, IWIN (Inventek Wireless Interoperability Network), makes it easy to take any Host microcontroller and communicate with any Inventek eS-WiFi (embedded Serial Wi-Fi), module, thus allowing customers to quickly get a Wi-Fi connected application up and running. The ISMART shield is an embedded wireless internet connectivity platform that operates in the 2.4 & 5.0 GHz spectrum. The ISMART hardware includes the option for an Inventek eS-WiFi module consisting of the Broadcom BCM43362 (2.4GHz), or BCM43341/0 Dual-Band (2.4GHz / 5GHz) 802.11 a/b/g/n MAC/Baseband/Radio with Integrated Bluetooth 4.0 and NFC. The ISMART shield is compatible with the Arduino UNO R3 connector layout. The Inventek eS-WiFi module options supported by ISMART require no operating system and contain an integrated TCP/IP stack. The Inventek eS-WiFi modules can be used with Inventeks AT Command Set FW, IWIN (Inventek Wireless Interoperability TM Network), or with Broadcoms WICED (Wireless Internet Connectivity for Embedded Devices ), SDK 3.1.2 or later. ISMART Hardware Features: Uses the Inventek ISM43341/0 or ISM43362 eS-WiFi modules leveraging Broadcoms leading edge radio devices. Includes an ST Microcontroller Cortex M3 STM32F204 (ISM43362) or Cortex M4 STM32F405 (ISM43341/0), MCU. Bluetooth 4.0 including BLE support. 2.4GHz (ISM43362) or 2.4/5 GHz (ISM43341/0), chip antenna on module. U.FL external antenna connector option for both modules Configurable using Inventek AT Commands FW (IWIN). Host interface: UART, SPI. Input Power: 5.0 V Near Field Communication (NFC option), with the ISM43341/0 modules. Dual Port FTDI for firmware development and testing. SPI Flash for Over The Air (OTA) updates FCC, IC and CE approval on all module options. All eS-WiFi module options also support a standard L44 form factor to enable customers to migrate between module options once in mass production without requiring any board layout changes. DOC-PB-20108-1.1 www.Inventeksys.com Inventek Systems Page 2
