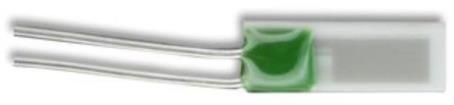

Platinum - 600C Platinum Thin-Film Temperature Sensor 5x2mm Product The combination of knowledge in the field of sensor technology and perfectly matched materials are key to this precise platinum thin-film temperature sensor. It shows an excellent long-term stability and resistance to thermal shock at temperatures up to a maximum of 600C. The chip dimensions of 5 x 2 mm (length x width) are available on the basis value of 100, 500 and 1000 ohms at DIN EN 60751 tolerance class or better. Advantages Wide temperature range Resistance to thermal shock Excellent long-term stability Easy interchangeability Technical Data Nominal resistance: 100, 500 , 1000, others on request Temperature range: -200C to 600C Classes: DIN class B DIN class A DIN class B Tolerance classes: DIN class B: -50C to 150C DIN class A: -90C to 300C DIN class B: -200C to 600C Temperature coefficient: TCR = 3850ppm/K Dependence of Resistivity: DIN EN 60751 Wires: Pt-Ni clad wire, 0.2 mm Long-term stability: max. Drift = 0.03% after 1000h at 600C Response time: Water (0.4 m/s) : T = 0.3s 0.63 Air (1m/s) : T = 8.5s 0.63 Measuring current: 0.5mA (100 ) 0.4mA (500 ) 0.3mA (1000 ) Self heating: Water mW/C : 80 Air mW/C : 7 Other Chipsizes, Nominal resistances, tolerances, length of wire or materials on request. All rights reserved. The material contained herein may not be reproduced, adapted, merged, translated, stored, or used without the prior V1.0-8/2006 written consent of the copyright owner. Typing errors and mistakes reserved. Product specifications are subject to change without notice. X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Board Mount Temperature Sensors category: Click to view products by Ist Innovative Sensor manufacturer: Other Similar products are found below : 5962-8757102XA 66F115 MCP9808-EMS MCP98242T-BEMNY MCP9843T-BEMC EMC1063-1-ACZL-TR NCT218FCT2G O53GAB175A-160Y OH10/62,112 3610085020002 389049M9527 TC622EAT TC6501P095VCTTR TC6501P105VCTTR TC6501P125VCTTR MCP9802A0T-M/OT MCP9803T-M/SN MCP9843-BEST TC6501P115VCTTR TC6502P065VCTTR ADM1023ARQZ-REEL ADM1024ARUZ-REEL ADM1032ARMZ-1RL AT30TS74-U1FMBB-T AT30TS74-U1FMAB-T AT30TS74- U1FMCB-T AT30TS74-U1FMDB-T ADT7483AARQZ-RL ADT7481ARMZ-REEL ADT7463ARQZ-REEL MCP98243T-BEMNY MCP98243T-BE/MC 66L080-0226 MAX31820MCR+T MAX1452CAEC8H DS1780E TMP05BKSZ-REEL7 5962-8757103XA WTK-14- 36/N E52-CA6D-N 4M MCP98244T-BEMNY MCP9802A5T-MOT MAX6581TG9A+T DS75S-C11+T&R S-58LM20A-I4T1U MAX6501UKP120+T MCP98243T-BE/ST AT30TS01-MAA5M-T NCT375DR2G DS18S20-SL+T&R
