SURE-SEAL SeriesSURE-SEAL
Reliability. Low Cost.
Performance. Delivery.
SURE-SEAL connectors a series of low cost and environmentally SURE-SEAL connectors were designed to meet the increased
sealed connectors. requirements for safety and reliability in the automotive field brought
about by Department of Transportation regulations. These sealed
The one-piece molded body and rugged multiple moisture seals make connectors satisfy all of the parameters defined by automotive /
the SURE-SEAL connector a natural for applications whose outside industrial standards including vibration, shock, temperature cycling, salt
contaminants must be excluded. water spray and immersion, petroleum derivatives, industrial gas, and
most important low millivolt drop and low contact resistance.
One of the many features of the SURE-SEAL connector is its simplicity.
In addition to the contacts, only two other parts the connector
bodies are required to complete the interconnect.
Features
Polarized Against Mis-Mates
Low Installed Cost
SURE-SEAL connector mating faces are constructed with two stepped
SURE-SEAL connectors are designed to be terminated by the
planes; the plug and receptacle must be properly oriented in order for the
O.E.M.
contacts to engage. For blind mating a raised indexing rib and match-
Field Service
ing raised indexing spline has been added to the plug and receptacle.
When necessary, SURE-SEAL connectors can be changed,
Water Submersible
modified or wired in the field.
Not just splash proof, but truly submersible for short periods of time.

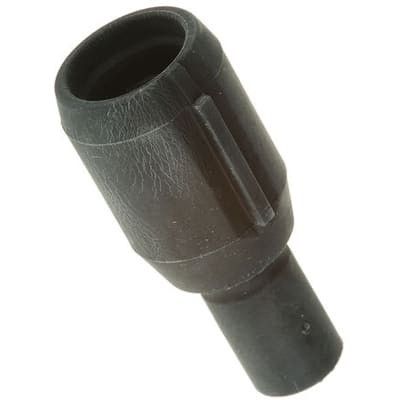

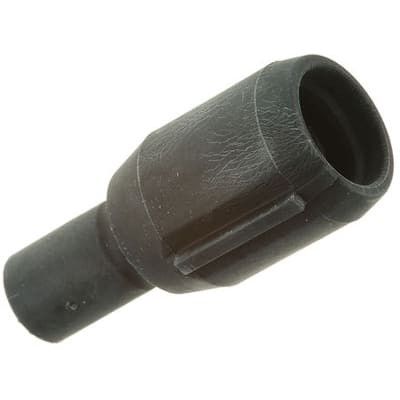

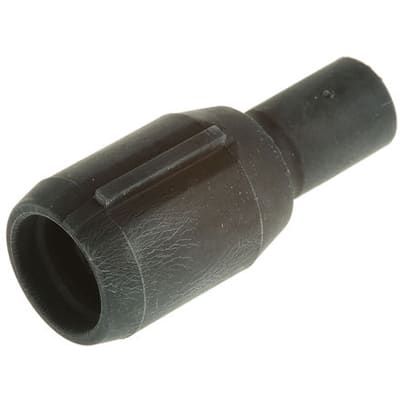

One-Piece Molded Bodies
SURE-SEAL fulfills the requirements according to IP68, IEC 60529. Note:
The SURE-SEAL connector incorporates a very simple one-piece
Although SURE-SEAL can withstand submersion, it is not designed to be
molded body. No other parts other than contacts are needed to an underwater connector.
assemble a complete connector.
Resistant to Automotive/Commercial Environment
Low Cost Stamped Contacts
SURE-SEAL connectors are designed to meet temperatures from 40 C
Without sacrificing quality, the cost of SURE-SEAL connectors is to 105 C under conditions of high humidity severe vibration, ice and mud.
kept low with stamped contacts available on reels in a continuous
Sealing integrity is still maintained with exposure to brake fluid, gasoline,
strip for use on the industry accepted semi automatic crimp press diesel fuel, anti-freeze, ultra violet, ozone, steam cleaning under normal
with mini applicator. All contacts utilize a B type crimp.
operating conditions.
Wide Wire Gage and Cable Accommodations Environment & Health
2
Ideally suited to be terminated on wires of size 0,4-1,5 mm (AWG RoHS compliant
14-20), wire sizes with insulation in the range of 1,4-1,8 for Mini Sure
Seal, resp. 1,8 - 2,8 for Sure Seal, termination to multiconductor
jacketed cables in the range of 5,3 to 12,4 mm diameter and can be
terminated to five different wire ranges depending on contact
arrangements with total environment sealing still assured.
Sealing Locking
Locking
Design lips ring
groove
Boot
Locking
Socket Sealing lips
Pin
groove
Boot
contact
contact
Pin
Sealing
Polarization contact
Guide
lips
Wire hole
Polarization
edge
Socket Sealing
fillers
Guide
contact lips
edge
The ITT Engineered Blocks symbol and the composite ITTlogo are registered trademarks of ITT Corporation. 2012.
Dimensions shown in mm
Specifications and dimensions subject to change
