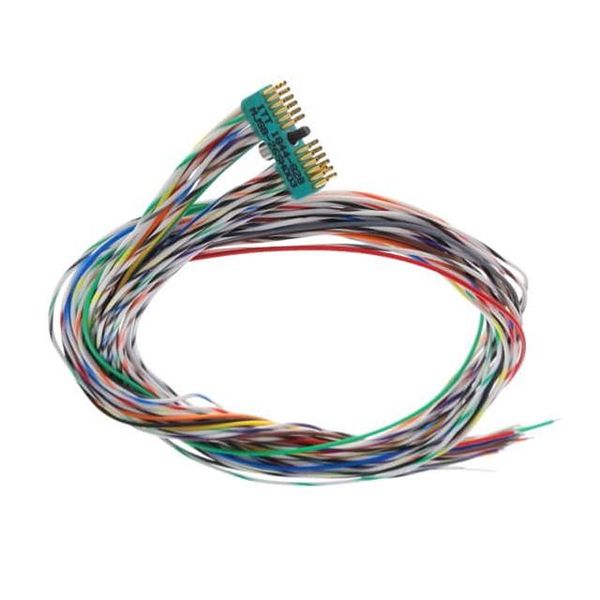

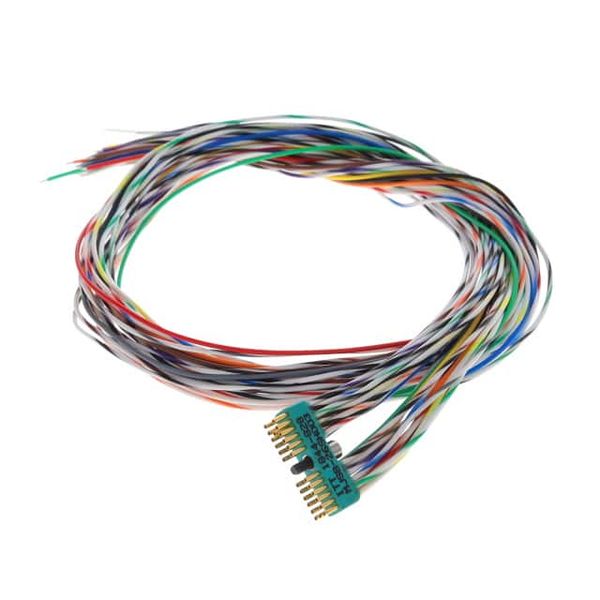

Miro Center Jackscrew MJS The MJS jackscrew series provides a reliable in- contacts are available, with the same wide range of terconnect for board-to-board, board-to-cable and options as are offered with the other MICRO Line in-line cable-to-cable applications. Layouts accom- products offered in this catalog. modating up to 76 MICROPIN/MICROSOCKET How to Order MJS * - 26 P H 001 SERIES INSULATOR MATERIAL CONTACT ARRANGEMENT CONTACT TYPE TERMINATION TYPE TERMINATION CODES SERIES CONTACT TYPE TERMINATION CODE* MJS - Micro Center Jackscrew P - Pin (H) 001 - 18 , 7/34 strand, 26 AWG, S - Socket MIL-W-16878/4, Type E Teflon, INSULATOR MATERIAL yellow. B - Diallyl phthalate TERMINATION TYPE (H) 003 - 18 , 7/34 strand, 26 AWG, V - Polyester H - Insulated wire harness. MIL-W-16878/4, Type E Teflon, U - Polyetherimide I - Integral tail (MJSV-28S only). color coded to MIL-STD-681 R - Polyphenylene sulfide L - Solid - uninsulated wire. System I. S - Solder pot to accept 26 AWG (L) 1 - 1/2 uninsulated solid 25 CONTACT ARRANGEMENTS harness wire. AWG gold plated copper. Unshrounded Receptacle: 10, 26, 51, 66 T - Thru bundle pigtail (MJSV-28P only). (L) 2 - 1 uninsulated solid 25 AWG Shrouded Receptacle 10, 34, 42, 76 gold plated copper. Low Profile Plug and Receptacle (shrouded): 28 * See Termination Codes shown below for additional length modfication codes. Standard Wire Termination Codes The following termination codes are listed for you information. For lengths not shown, consult factory for proper modification code. All wire lengths are minimum. Harness Type (H) Solid Uninsulated Type (L) 26 AWG per MIL-W-16878/4 Type E Teflon, 7/34 stranded. 25 AWG gold plated copper. Length All Yellow Color Coded Length All Yellow Color Coded Termination Termination Length Length Code Code 3 (76.2) H 020 H 027 24 (609.6) H 009 H 004 L61 .125 (3.18) L14 .750 (19.05) 6 (152.4) H 019 H 016 30 (762.0) H 010 H 005 L56 .150 (3.81) L2 1.000 (25.40) 8 (203.2) H 026 H 034 36 (914.4) H 011 H 006 L57 .190 (4.83) L7 1.500 (38.10) 10 (254.0) H 029 H 025 48 (1219.2) H 013 H 048 L39 .250 (6.35) L6 2.000 (50.80) 12 (304.8) H 028 H 002 72 (1828.8) H 017 H 046 L58 .375 (9.53) L16 2.500 (63.50) 18 (457.2) H 001 H 003 120 (3048.0) H 042 H 041 L1 .500 (12.70) L10 3.000 (76.20) 20 (508.0) H 038 H 023 Contact Arrangements Face view of pin-use reverse order for socket 1 6 1 10 7 10 11 18 12 1 4 1 11 16 19 28 14 13 6 5 10 7 26 15 16 Contacts** 28 Contacts** 10 Contacts 26 Contacts 21 1 1 12 17 1 44 23 13 22 34 18 66 45 51 35 23 34 51 Contacts 66 Contacts 34 Contacts MJSB/MJSU MJSV *Low profile configuration Identification numbers are for reference only and do not appear on connectors. **MJSV & MJSR Dimensions are shown in inches (millimeters). Dimensions subject to change. www.ittcannon.com 258Micro Center Jackscrew MJS Unshrouded Receptacle (10-26-51-66) MJSB/MJSU .170 + .010 (4.32 + 0.25) POLARIZING PIN (OPTIONAL WITH LOSS OF CONTACT) .126 + .005 (3.20 + 0.13) B .050 (1.27) TYP. 1-64 UNC-2A THREAD C A 1-64 UNC-2B THREAD .145 (3.68) .055 (1.40) TYP. DIA170 (4.32) MAX. MAX332 (8.43) MAX110 MAX. (2.79) Rear View Receptacle Plug A B C STANDARD MATERIALS AND FINISHES Part Number Max. Max. Bsc. Micropin Copper alloy, 50 miro-inch gold MJSB or MJSU-10P .378 (9.60) .190 (4.83) .290 (7.37) Microsocket Copper alloy, 50 micro-inch gold MJSB or MJSU-10S .378 (9.60) .190 (4.83) .290 (7.37) Insulator Diallyl phthalate, green color MJSB or MJSU-26P .778 (19.76) .190 (4.83) .690 (17.53) or polyetherimide, natural color MJSB or MJSU-26S .778 (19.76) .190 (4.83) .690 (17.53) Stainless steel, passivated & lubricated Jackscrew MJSB or MJSU-51P 1.028 (26.11) .260 (6.60) .940 (23.88) Stainless steel, passivated Retainer, Jackscrew MJSB or MJSU-51S 1.028 (26.11) .260 (6.60) .940 (23.88) Stainless steel, passivated Insert, Threaded MJSB or MJSU-66P 1.280 (32.51) .260 (6.60) 1.190 (30.23) Stainless steel, passivated Post, Polarizing MJSB or MJSU-66S 1.280 (32.51) .260 (6.60) 1.190 (30.23) Shrouded Receptacle (16-28*-34) MJSV/MJSR A 1-64 UNC-2B .205 (5.21) MAX. THREAD .080 (2.03) .065 (1.65) .285 (7.24) B MAX. D C Face View Plug .090 + .010 (2.29 + 0.25) A 1-64 UNC-2A THREAD B .285 (7.24) MAX110 (2.79) MAX. C Face View Receptacle .145 (3.68) DIA. MAX. A B C D STANDARD MATERIALS AND FINISHES Part Number Max. Max. Ref. + .006 (0.15) Micropin Copper alloy, 50 miro-inch gold MJSV or MJSR-16P .700 (17.78) .345 (8.76) .545 (13.84) .175 (4.45) Microsocket Copper alloy, 50 micro-inch gold MJSV or MJSR-16S .700 (17.78) .320 (8.13) .545 (13.84) - Insulator Polyester, black color MJSV-28P* 1.020 (25.91) .232 (5.89) .865 (21.97) .062 (1.57) Polyphenylene sulfide, black color MJSV-28S* 1.020 (25.91) .246 (6.25) .865 (21.97) - Stainless steel, passivated & lubricated Jackscrew MJSV-34P 1.180 (29.97) .330 (8.38) 1.025 (26.04) .160 (4.06) Stainless steel, passivated Retainer, Jackscrew MJSV-34S 1.180 (29.97) .305 (7.75) 1.025 (26.04) - Stainless steel, passivated Insert, Threaded *Low profile configuration, for (uninsulated solid wire) termination add .090 (2.29) to the dimension. For (insulated wire) Stainless steel, passivated Post, Polarizing termination add .200 (5.08) to the dimension. Dimensions are shown in inches (millimeters). Dimensions subject to change. www.ittcannon.com 259
