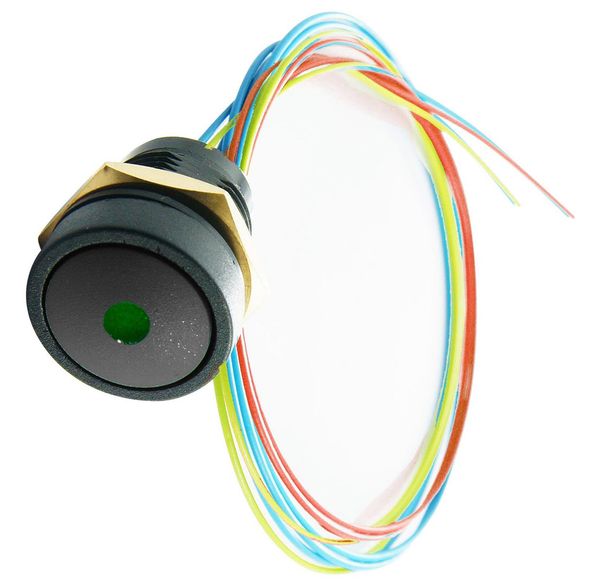

SERIES 49-59 4 page (11114) 27 07 2000 5:18 pm Page 2 Data Sheet no. 49-59500 SERIES 49-59 SEALED PUSHBUTTON RANGE FEATURES Fully sealed version to IP67 LED status illumination (FL) 10A version panel sealed to IP67 Wide temperature range: Up to +105C Industrial standard 16mm panel cut out Flame retardant UL rated material NON-STANDARD OPTIONS Custom colours Choice of terminations Gold contacts on microswitch version Snap-in version of both flying lead and microswitch variantsSERIES 49-59 4 page (11114) 27 07 2000 5:18 pm Page 3 Technical Information Series 49-59 ITW Switches 49-59 Series is a range of momentary action pushbutton switches which fit a 16mm panel cut out. The range consists of a fully sealed IP67 version with insulated flying leads (500mm length) along with a panel sealed IP67 version which is terminated by a series 16 microswitch. Held in position by a snap fit retaining mechanism, the microswitch has a maximum current rating of 10A and the advantage of SPDT-DB contacts to cover all circuit requirements. Being double break, the contacts also provide reliable switching of DC loads. The Series is available with a choice of round, round with status illumination (flying leads only) or square bezels and with 6 button colour variants. The body and button are made from PBT, a hard wearing thermoplastic polyester that is suitable for surface or sublimation printing or engraving. Mechanical Travel (nom) 2,3mm Life (min) 1,000,000 cycles Operating force 3N (FL) 3.8 5.5N (MS) Panel thickness 8mm max (FL) 2,5mm max (MS w/o washer) 1,5mm max (MS with washer) Electrical Dielectric strength 1000V a.c. for 1 min Insulation resistance 1G 500V d.c. Contact resistance 150m max initial inc leads (FL) 25m max initial (MS) Current rating 400mA 32V a.c. res (FL) 100mA 50V d.c. res (FL) 125mA 125V a.c. res (FL) 10A 250V a.c. res (MS) Life 500,000 cycles (FL) 50,000 cycles 70C (MS) Electrical LED Typical fwd voltage (Vf at I operating) 2,2V Max fwd voltage (Vf at I operating) 3,0V Forward current (I operating) 20mA Meantime between failures 100,000 hours Luminous intensity (lv at lopr) Red LED 100mcd Luminous intensity (lv at lopr) Green LED 160mcd Environmental & Physical Ingress protection IP67 Vibration DEF STD 07-55 Non-illuminated Operating temperature range -55C to +105C Illuminated Operating temperature range -35C to +85C Body material PBT Button material PBT Contacts Gold plated palladium nickel (FL) Silver (MS) Terminals Tin plated brass (MS) Salt mist BS2011 Part 2:1 Key Soldering information 320C max for 3s FL Version with flying leads MS High current microswitch terminated version
