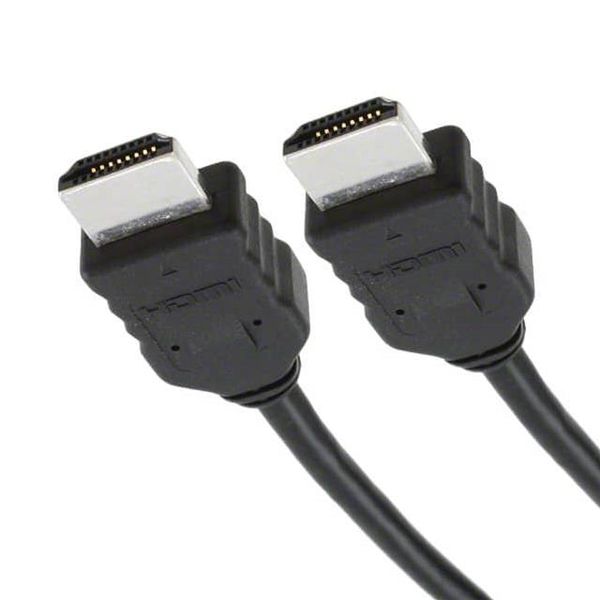

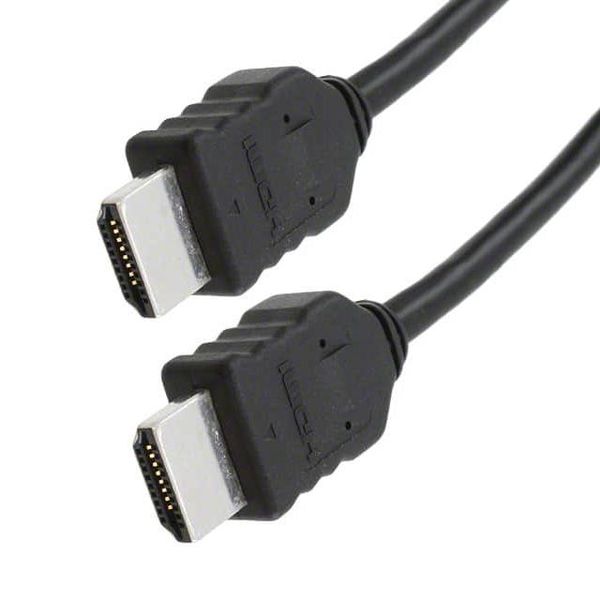

COMPONENTS PRODUCT INFORMATION CONNECTOR HDMI Standard Digital Interface Connector NEW MB-0121-3 February 2013 DC1 Series RoHS Compliant The market for digital consumer devices such as LCD TVs, BD players has been rapidly growing along with the progress of digital high-definition television broadcasting. The DC1 Series is a connector created specifically for use with the HDMI standard, a digital interface standard for digital consumer devices. *HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. Features 1.0mm pitch, compact connector. Impedance-matching design for high-speed transmission. Grounding structure for excellent EMI control. Friction lock for easy insertion and removal of connector. Applicable Markets LCD television, LCD projector, Set-top box, BD player, etc. General Specifications Rated Voltage: 0.5A max. No. of Contacts: 19 pos. Insulation Resistance: 100M min. Dielectric Withstanding Voltage : AC 500V rms Impedance: 100 15% Operating Temperature: -20 Deg. C to +85 Deg. C JAE PMK Div. Proprietary. Copyright 2013, Japan Aviation Electronics Industry, Ltd. 1/8MB-0121-3 Materials and Finishes Receptacle Plug (for Cable Harness) Component Material / Finish Component Material / Finish Insulator Heat resistant plastic Insulator Heat resistant plastic Contact Copper alloy / Au plating over Ni Contact Copper alloy / Au plating over Ni Shell Copper alloy / Sn plating Shell Copper alloy / Sn plating Hood PVC / Color: Black (UL94V-0) Ordering Information Receptacle Note1 DC1 R * 19 * A * E550 Series E550: Emboss product 550pcs. / reel Receptacle Modification Code Modification Code No. of Contacts: 19 pos. Plating A: Au plating Terminal J: SMT Right angle type Note 1 W: SMT Straight type R550 is available for DC1RS19JA7 only. HDMI-HDMI Cable Harness Note 2 DC1P 019 S T3 **** B Color B: Black Series Cable length (cm) No. of Contacts: 19 pos. 0150: 150cm 0200: 200cm Wiring 0300: 300cm S: Single Link 0500: 500cm Applicable Cable T3: Twinax cable 30AWG T8: Twinax cable 28AWG Note 2 Cable Specification T3 is 150cm, 200cm, 300cm. T8 is 500cm. JAE PMK Div. Proprietary. Copyright 2013, Japan Aviation Electronics Industry, Ltd. 2/8
