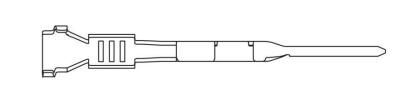

Wire-to-wire/Sealed connector Wire-to-wire/Sealed connector CONNECTOR MWT Features Compliant with the ISO19689 Compliant with the ISO19689 which is the Motorcycle OBD standard connector. Individual Sealed Connector Individual sealed connector with 0.64 mm terminal, 3.0 mm X 3.0 mm pitch. Pre-set Retainer Simple assemble harnesses, due to there is no necessity to add retainer afterwards. Selectable to the installation direction to the body The protection cover is designed to set the connector in a vertical or horizontal direction on a bracket of the body with using a clip structure. Compliant with the ISO 19689, 0.64 mm individual waterproof, 6 pole wire to wire connection connector. The retainer is a pre-set type for both female and male housing. Protection cover to female connector from water and dust is selectable to the installation direction. Specifications 1 2 Current rating: 3.5 A DC (* ), 7.5 A DC (* ) Temperature range: -40 C to +105 C (including temperature rise in applying electrical current) Insulation resistance: 100 M min. Withstanding voltage: 1,000 VAC/minute Applicable wire: AVSS 2 2 0.3 mm , 0.5 mm *1. Temperature 20 5 C (full circuits) *2. Temperature 20 5 C (single circuit) Compliant with ELV/RoHS2. Contact JST for details. 1MWT CONNECTOR Female terminal Applicable wire range , Model No. Q ty/reel Conductor Insulation O.D. 2 (mm ) (mm) SMWTS-A021T-C064 0.3 to 0.5 1.4 to 1.7 5,000 Material and Finish 15 6.5 Copper alloy, tin-plated (reflow treatment) Female connector , Circuits Model No. Q ty/box 6 MWTRB-06-1A-R 750 Material and Finish Housing : Glass-filled PBT, Red Retainer: Glass-filled PBT, Black Inner seal: Silicone, Brown 19.2 21 Male terminal Applicable wire range , Model No. Q ty/reel Conductor Insulation O.D. 2 (mm ) (mm) SMWTWS-A021T-064 0.3 to 0.5 1.4 to 1.7 5,500 Material and Finish 22.3 Brass, tin-plated (reflow treatment) 13.6 Male connector , Circuits Model No. Q ty/box 6 MWTPB-06-1A-R 750 Material and Finish Housing: Glass-filled PBT, Red Retainer: PBT, Black 17.8 37.9 2 21.3 2 1.5 17
