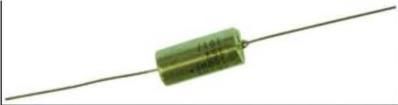

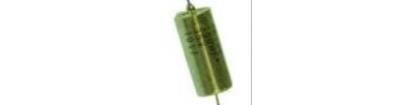

Axial Leaded Multilayer Ceramic Capacitors Aximax, 400, Conformally Coated, C0G Dielectric, 25 250 VDC (Commercial Grade) Overview KEMETs Aximax conformally coated axial leaded ceramic change in capacitance with respect to time and voltage and capacitors in C0G dielectric feature a 125C maximum boasts a negligible change in capacitance with reference operating temperature. The Electronics Industries to ambient temperature. Capacitance change is limited to Alliance (EIA) characterizes C0G dielectric as a Class I 30ppm/C from 55C to +125C. stable material. Components of this classification are temperature compensating and are suited for resonant These devices meet the flame test requirements outlined in circuit applications or those where Q and stability of UL Standard 94V0. capacitance characteristics are required. C0G exhibits no Benefits Axial leaded form factor Conformally coated O p e r a ti n g te m p e r a t u r e r a n g e of 5 5 C to +125 C Lead (Pb)-free, RoHS and REACH compliant DC voltage ratings of 25 V, 50 V, 100 V, 200 V and 250 V C a pa c i t a n c e of fe r i n gs r a n g i n g fr o m 1.0 p F u p to 0.1 F Available capacitance tolerances of 0.5 pF, 1%, 2%, 5%, and 10% Extremely low ESR and ESL High thermal stability High ripple current capability Ordering Information C 410 C 472 J 5 G 5 T A 7200 Rated Style/ S p e c i fi ca ti on / Capacitance Capacitance Failure Packaging 2 Ceramic Voltage Dielectric Design Lead Finish 1 Size Series Code (pF) Tolerance Rate (C-Spec) (VDC) 410 C = First two digits D = 0.5 pF 3 = 25 G = 5 = T = 100% Matte Sn A = Blank = Bulk 412 Standard represent F = 1% 5 = 50 C0G Multilayer H = SnPb (60/40) N/A 7200 = 12 Reel 420 s ig n i fi c an t G = 2% 1 = 100 7293 = Ammo 430 fi g u r e s . T h i r d J = 5% 2 = 200 Pack 440 d i g i t s p e c i fi e s K = 10% A = 250 number of zeros. 1 Additional capacitance tolerance offerings may be available. Contact KEMET for details. 2 Lead materials: Standard: 100% matte tin (Sn) with nickel (Ni) underplate and steel core ( T designation). Alternative 1: 60% tin (Sn)/40% lead (Pb) finish with copper-clad steel core ( H designation). Alternative 2: 60% tin (Sn)/40% lead (Pb) finish with 100% copper core (available with H designation code with C-Spec). Contact KEMET for C-Spec details. One world. One KEMET KEMET Electronics Corporation KEMET Tower One East Broward Boulevard C1040 AXIMAX C0G 8/20/2018 1 Fort Lauderdale, FL 33301 USA 954-766-2800 www.kemet.comAxial Leaded Multilayer Ceramic Capacitors Aximax, 400, Conformally Coated, C0G Dielectric, 50 200 VDC (Commercial Grade) Benefits cont d No capacitance change with respect to applied rated DC 100% pure matte tin-plated lead nfi ish allowing for excellent voltage solderability Negligible capacitance change with respect to temperature SnPb-plated lead nfi ish option available upon request from 55C to +125C (Sn60/Pb40) No capacitance decay with time Encapsulation meets flamability standard UL 94V0 Non-polar device, minimizing installation concerns Applications Typical applications include critical timing, tuning, circuits requiring low loss, circuits with pulse, high current, decoupling, bypass, filtering, transient voltage suppression, blocking and energy storage. Application Notes These devices are not recommended for use in overmold applications and/or processes. Dimensions Inches (Millimeters) LL L D 0.015 (0.38) LD Maximum L D LL Style/ LD Series Length Diameter Lead Length Size Lead Diameter Maximum Maximum Minimum 410 0.170 (4.32) 0.095 (2.41) C41X 412 0.170 (4.32) 0.120 (3.05) 0.0 2 0 + 0.0 0 1/ 0.0 0 3 1.0 C42X 420 0.200 (5.08) 0.100 (2.54) (0.5 1+ 0.0 2 5 / 0.0 76) (25.4) C43X 430 0.240 (6.10) 0.150 (3.81) C44X 440 0.260 (6.60) 0.150 (3.81) Qualification/Certification Commercial Grade products are subject to internal qualification. Details regarding test methods and conditions are referenced in Table 2, Performance & Reliability. KEMET Electronics Corporation KEMET Tower One East Broward Boulevard C1040 AXIMAX C0G 8/20/2018 2 Fort Lauderdale, FL 33301 USA 954-766-2800 www.kemet.com
