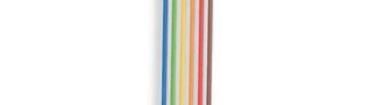

KLASING KABEL GmbH Date: 15.11.00 Data Sheet Coloured Flat Cable FBL XX x 0,23 / 1,10 - 1,40 Pitch2,54 Klasing P/N 050915xx CONSTRUCTION: Conductor: Stranded copper wire, 7 x 0,203 mm => 0,23 mm, AWG 24 tinned, 1. Insulation: PVC Colours : optional : 1,10 0,05 mm Shorehardness (A) : 90 3 2. Insulation: PVC Colour : clear Pitch : 2,54 0,10 mm : 1,40 0,10 mm Bridge : 0,35 0,05 mm Shorehardness (A) : 91 3 Printing: optional Technical Data: Test voltage : > 2 kV at 50 Hz eff. for 1 minute. Insulation resistance min. : 20 MOhm x km at 20 C Conductor resistance max. : 90 Ohm/km at 20 C Operating voltage max. : 300 V Temperature rating: static : - 20 to + 70 C operating : - 10 to + 70 C Flame retardent acc to DIN VDE 0482 Part 625-2-1 The information provided in this data-sheet is correct according to the best of our know-ledge. It is provided for information purposes only and is itended to assist with planing. It does not relieve the user of his or her responsibility to check in advance whether the products we supply are suitable for the purpose intended by the user. It is subject to change, should new information render this neccessary. Page 1(2) KLASING KABEL GmbH Date: 15.11.00 Data Sheet Coloured Flat Cable FBL XX x 0,23 / 1,10 - 1,40 Pitch2,54 Klasing P/N 050915xx No. of cond.: Overall width: Total pitch: P/N: (mm) (mm) 2 3,94 0,10 2,54 0,10 05091502 3 6,48 0,15 5,08 0,15 05091503 4 9,02 0,20 7,62 0,20 05091504 5 11,56 0,25 10,16 0,25 05091505 6 14,10 0,25 12,70 0,25 05091506 7 16,64 0,25 15,24 0,25 05091507 8 19,18 0,25 17,78 0,25 05091508 9 21,72 0,25 20,32 0,25 05091509 10 24,26 0,25 22,86 0,25 05091510 11 26,80 0,25 25,40 0,25 05091511 12 29,34 0,25 27,94 0,25 05091512 13 31,88 0,30 30,48 0,30 05091513 14 34,42 0,30 33,02 0,30 05091514 15 36,96 0,30 35,56 0,30 05091515 16 39,50 0,30 38,10 0,30 05091516 17 42,04 0,30 40,64 0,30 05091517 18 44,58 0,30 43,18 0,30 05091518 19 47,12 0,40 45,72 0,40 05091519 20 49,66 0,40 48,26 0,40 05091520 21 52,20 0,40 50,80 0,40 05091521 22 54,74 0,40 53,34 0,40 05091522 23 57,28 0,40 55,88 0,40 05091523 24 59,82 0,40 58,42 0,40 05091524 25 62,36 0,50 60,96 0,50 05091525 26 64,90 0,50 63,50 0,50 05091526 27 67,44 0,50 66,04 0,50 05091527 28 69,98 0,50 68,58 0,50 05091528 29 72,52 0,50 71,12 0,50 05091529 30 75,06 0,50 73,66 0,50 05091530 Other no. of conductors possible Page 2(2)
