X-On Electronics has gained recognition as a prominent supplier of DRS4016 DIP Switches/SIP Switches across the USA, India, Europe, Australia, and various other global locations. DRS4016 DIP Switches/SIP Switches are a product manufactured by Knitter-Switch. We provide cost-effective solutions for DIP Switches/SIP Switches, ensuring timely deliveries around the world.

DRS4016 Knitter-Switch

Name: DRS4016
Brand: Knitter-Switch
SKU: DRS4016_Knitter-Switch
Availability: InStock
Rating: 5 (11 reviews)

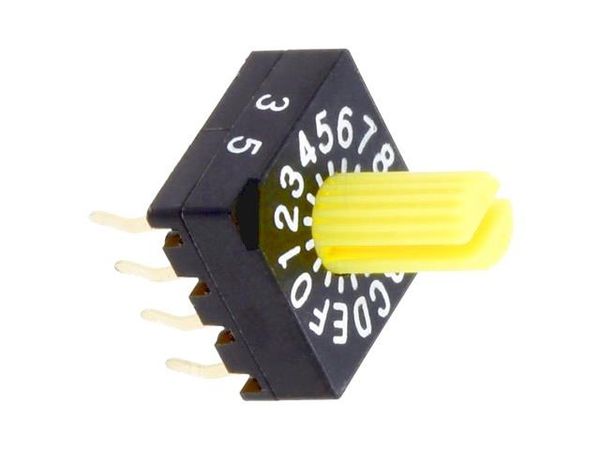

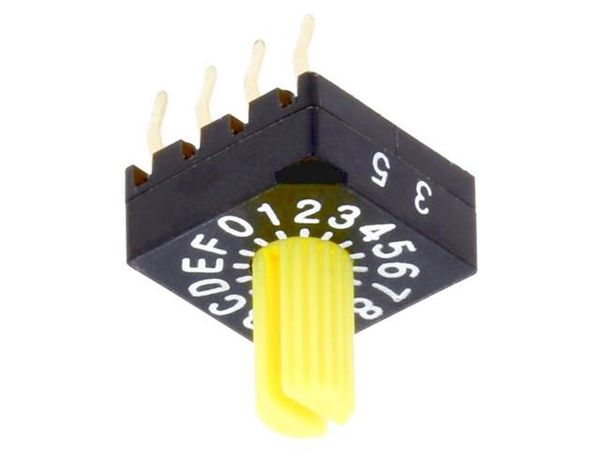

DRS4016 electronic component of Knitter-Switch

Images are for reference only
See Product Specifications

Part No.	DRS4016
Manufacturer:	Knitter-Switch
Category:	DIP Switches/SIP Switches
Description:	Switch DIP N.O./N.C. SP16T 16 Extended Shaft 0.03A 15VDC PC Pins 20000Cycles Thru-Hole
Datasheet:	DRS4016 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

24: USD 2.756 ea
Line Total: USD 66.14

Availability - 172
Ship by Fri. 07 Mar to Thu. 13 Mar

MOQ: 24 Multiples: 1
Pack Size: 1

DRS4016 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

118

Ship by Wed. 05 Mar to Fri. 07 Mar

MOQ : 1
Multiples : 1

1 : USD 7.14
5 : USD 4.648
6 : USD 3.122
16 : USD 2.954
288 : USD 2.912

118

Ship by Fri. 07 Mar to Thu. 13 Mar

MOQ : 19
Multiples : 1

19 : USD 4.8776

172

Ship by Fri. 07 Mar to Thu. 13 Mar

MOQ : 24
Multiples : 1

24 : USD 2.756
50 : USD 2.457
100 : USD 2.366

Specifications

Manufacturer

Knitter-Switch Knitter-Switch

Product Category

DIP Switches/SIP Switches DIP Switches/SIP Switches

RoHS - XON

1 1

Number of Positions

16 16

Switch Type

sub - miniature sub - miniature

Actuator

extended shaft extended shaft

Terminal Pitch

not required(mm) not required(mm)

Termination Style

pc pins pc pins

Current Rating

0.03 A 0.03 A

Voltage Rating DC

15 V VDC 15 V VDC

Operating Temperature Range

85 C 85 C

Mounting

through hole through hole

Brand

Knitter-Switch Knitter-Switch

Contact Plating

gold gold

Illumination Type

not required not required

Product Length Mm

10 mm 10 mm

Product Depth Mm

10 mm 10 mm

Mechanical Life

20000 20000

Terminal Type

pc pins pc pins

Operating Temp Range

- 40 C to 85 C - 40 C to 85 C

Deleted

compliant compliant

Product Height Mm

11.8 mm 11.8 mm

Pole Throw Configuration

sp16t sp16t

Rad Hardened

no no

Body Orientation

straight straight

Contact Material

copper alloy copper alloy
