254-EMB85CX-RO Kobitone

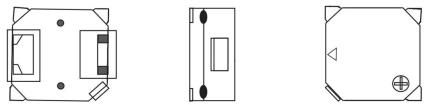

Date: 01/15/15 Magnetic Buzzer (External Drive) Dimensions: mm (in.) Part Number: 254-EMB85CX-RO 8.5 4 Polarity PAD (+) 4-1.5 (.335) (.16) (.06) 3-2.16 (.085) Black Glue Sound Port 8.5 9.53 5.21 (.335) (.205) (.375) 2- Dummy PAD Polarity PAD (-) 4- Dummy PAD .15.05 Recommended P.C.B. Layout (.01.006) Frequency Response Curve x: 2.7384kHzy :88.13dB ZA: Live Curve SSR T. RMS A: Frequency Response, Magn dB ro 20.00 PA 100 90 dB 80 70 60 50 100 200 500 1k 2k 10k 5k Hz KT-400570 Electrical Specifications: Mechanical Specifications: Rated Voltage: 3.6 Vo-p Operating Temperature: -30 to + 75 Operating Voltage: 2.5~4.5 Vo-p Storage Temperature: -40 to + 85 Consumption Current: Mean 100mA (max) Peak 300mA (max) Sound Output: 87 dBa (min) Soldering Process: Rated Frequency: 2730Hz Hand Soldering: 3505C / 2 sec. Direct Current Resistance: 16 3 Recommend using constant searing-iron Note: Reflow Soldering: 2605C / 2 sec. RoHS Compliant After Solderbath Cooling Time: > 2 hour later function test Available from Mouser Electronics www.mouser.com (800) 346-6873 Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation. Magnetic Buzzer
