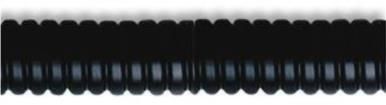

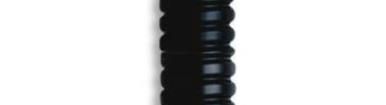

KE LOW ACID PVC FLEXIBLE CONDUIT Technical Data Sheet CONSTRUCTION : BLACK FLAME RETARDANT LOW ACID PVC COVERING GALVANISED STEEL CORE 50mm size is Black Flame Retardant PVC RECOMMENDED CONNECTORS: KF-E GA, GB, GC, GU and GQM CONDUIT SIZE (mm) 10 12 16 20 25 ORDERING CODES KEBF 0110 KEBF 0210 KEBF 0310 KEBF 0410 KEBF 0510 KEBF 0130 KEBF 0230 KEBF 0330 KEBF 0430 KEBF 0530 KEBF 0450 KEBF 0550 DIMENSIONS: INSIDE DIAMETER (mm) 7.0 10.0 12.9 17.0 21.1 OUTSIDE DIAMETER (mm) 10.3 13.8 17.1 21.2 25.7 MIN BEND RADIUS STATIC (mm) 30.0 30.0 35.0 40.0 50.0 AVERAGE WEIGHT (kg/100m) 12.5 19.8 23.1 31.4 38.5 MECHANICAL CLASSIFICATIONS: CONNECTOR PULL-OFF MEDIUM MEDIUM HEAVY HEAVY HEAVY CONDUIT CRUSH HEAVY HEAVY HEAVY HEAVY HEAVY CONDUIT SIZE (mm) 32 40 50 ORDERING CODES KEBF 0610 KEBF 0710 KEB 0810 KEBF 0620 KEBF 0720 KEB 0820 DIMENSIONS: INSIDE DIAMETER (mm) 28.4 36.4 48.2 OUTSIDE DIAMETER (mm) 33.0 41.1 54.9 MIN BEND RADIUS STATIC (mm) 60.0 80.0 180.0 AVERAGE WEIGHT (kg/100m) 51.7 64.4 116.0 MECHANICAL CLASSIFICATIONS: CONNECTOR PULL-OFF HEAVY HEAVY HEAVY CONDUIT CRUSH HEAVY HEAVY HEAVY FOR TEST METHODS AND EXPLANATION OF CLASSIFICATIONS SEE SHEET 810100. FOR PERFORMANCE DETAILS OF PVC COVERING MATERIAL SEE SHEET 810084. OTHER PROPERTIES: RESISTANCE TO FLAME PROPAGATION FLAME DIES IN LESS THAN 30 SECONDS AFTER IGNITION SOURCE REMOVED. IP RATING WITH RECOMMENDED CONNECTOR IP 54 (NO INGRESS OF TALCUM POWDER AT NORMAL PRESSURE AND NO INGRESS OF WATER WITH TURNTABLE SUPPLY). OPERATING TEMPERATURE OF COVERING STATIC - 25 TO + 70 C. FLEXING - 5 TO + 70 C. KOPEX FLEXIBLE CONDUIT IS INTENDED TO PROTECT CABLES IN APPLICATIONS WHERE THERE IS REPEATED FLEXING, VIBRATION AND BENDING. WHEN INSTALLING WIRING SYSTEMS, ADHERENCE TO THE CURRENT WIRING REGULATIONS, BS7671 OR NEC WIRING REGULATIONS (FOR USA) IS STRONGLY ADVISED. The Companys policy is one of continuous improvement and reserves the right to change specifications at any time without prior notice. 810025/12 KOPEX INTERNATIONAL LIMITED, Station Road, Coleshill, Birmingham B46 1HT, England. Telephone: + 44 (0) 1675 468213. Fax: + 44 (0) 1753 693521. Website: www.kopex.co.uk X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Wire Identification category: Click to view products by Kopex manufacturer: Other Similar products are found below : CU6337-000 CU6342-000 FCA-410-12 11631010 1-1768037-1 1-1768037-2 1-1768050-0 PXLK-VI Q62184-1 A64304-000 QMT221 HK032WE1NF038B 1330-0519-10 1395199-1 1395200-1 1395202-1 DMVF050WE-300S6 D-SCE-1K-2.4-50-4-CS7834 1538738-1 E90935-000 EC1238-000 EC1465-000 EC1855-000 EC1859-000 EC1863-000 EC5415-000 EC7277-000 EC7352-000 EC7603-000 EC7707-000 EC7735-000 EC7768-000 EC7828-000 EC7854-000 EC7952-000 EC8128-000 1768037-8 1768041-7 NC-127191-10-9 HS048WE2NF038B C03232-000 HTCM-SCE-14-4H-9 HTMS-3/16-9 HT-SCE-1/4-2.0-4 HT-SCE-3/16-2.0-4 HTTMS-1/2-1.50-9 HTTMS- CM-1/2-4H-9 HX-SCE-19.0-50-9 HX-SCE-6.4-50-4 C25254-000
