X-On Electronics has gained recognition as a prominent supplier of KPS-MT700 Digital Multimeters across the USA, India, Europe, Australia, and various other global locations. KPS-MT700 Digital Multimeters are a product manufactured by KPS. We provide cost-effective solutions for Digital Multimeters, ensuring timely deliveries around the world.

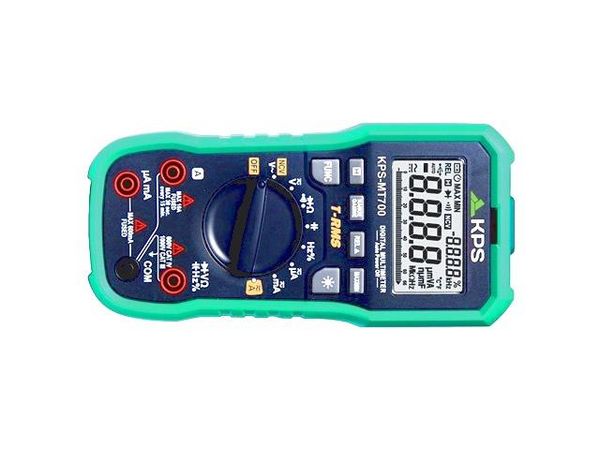

KPS-MT700 KPS

Images are for reference only
See Product Specifications

Part No.	KPS-MT700
Manufacturer:	KPS
Category:	Digital Multimeters
Description:	Digital multimeter; USB; LCD; (6600); True RMS; Diode test: 3.2V
Datasheet:	KPS-MT700 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 135.4752 ea
Line Total: USD 135.48

Availability - 5
Ship by Tue. 26 Nov to Thu. 28 Nov

MOQ: 1 Multiples: 1
Pack Size: 1

KPS-MT700 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

5

Ship by Tue. 26 Nov to Thu. 28 Nov

MOQ : 1
Multiples : 1

1 : USD 135.4752
3 : USD 135.24

Specifications

Manufacturer
KPS KPS

Product Category
Digital Multimeters Digital Multimeters

Kind Of Display Used
LCD LCD

Power Supply
b A ttery 6F22 9 V x1 b A ttery 6F22 9 V x1

Interface
USB USB

Conform To The Norm
EN 61010, CAT III 1000V, CAT IV 600V EN 61010, CAT III 1000V, CAT IV 600V

Illumination
yes yes

Measuring Instrument Features
automatic power - off, contactless voltage detector, low battery indicator automatic power - off, contactless voltage detector, low battery indicator

Type Of Meter
digital multimeter digital multimeter

Test
diodes, circuit continuity diodes, circuit continuity

True Effective Value Measurement
True RMS True RMS

Measurement
AC voltage, DC voltage, frequency, capacitance, DC current, resistance, AC current AC voltage, DC voltage, frequency, capacitance, DC current, resistance, AC current

Dimensions W X H X D
179x86x52.1mm 179x86x52.1mm

Ac Current Measuring Range
10 A , 66 mA , 660 uA , 660 mA , 6.6 mA 10 A , 66 mA , 660 uA , 660 mA , 6.6 mA

Resistance Measuring Range
660 Ohms , 66 kOhms hms , 660 kOhms hms , 6.6 MOhms , 66 MOhms , 6.66 kOhms hms 660 Ohms , 66 kOhms hms , 660 kOhms hms , 6.6 MOhms , 66 MOhms , 6.66 kOhms hms

Dc Current Measuring Range
10 A , 66 mA , 660 uA , 660 mA , 6.6 mA 10 A , 66 mA , 660 uA , 660 mA , 6.6 mA

Dc Voltage Measuring Range
1 kV , 660 mV , 6.6 V , 66 V , 660 V 1 kV , 660 mV , 6.6 V , 66 V , 660 V

Ac Voltage Measuring Range
1 kV , 660 mV , 6.6 V , 66 V , 660 V 1 kV , 660 mV , 6.6 V , 66 V , 660 V

Frequency Measuring Range
660 Hz , 6.6 KHz , 66 KHz , 660 KHz , 6.6 MHz , 66 MHz , 66 Hz 660 Hz , 6.6 KHz , 66 KHz , 660 KHz , 6.6 MHz , 66 MHz , 66 Hz

Capacitance Measuring Range
66 nF , 660 nF , 6.6 uF , 66 uF , 660 uF , 6.6 MF , 66 MF , 6.6 nF 66 nF , 660 nF , 6.6 uF , 66 uF , 660 uF , 6.6 MF , 66 MF , 6.6 nF

Diode Test
3.2V 3.2V

Display Parameters
(6600) (6600)

Frequency Measuring Accuracy
(1.5 % + 5 digit) (1.5 % + 5 digit)

Capacitance Measuring Accuracy
± (3 % + 3 digit) , ± (4 % + 5 digit) @ 6.6 nF To 66 MF ± (3 % + 3 digit) , ± (4 % + 5 digit) @ 6.6 nF To 66 MF

Ac Current Measuring Accuracy
(1.5 % + 5 digit) , ± (3 % + 5 digit) @10 A (1.5 % + 5 digit) , ± (3 % + 5 digit) @10 A

Dc Voltage Measuring Accuracy
(0.5 % + 5 digit) , ± (0.8 % + 3 digit) @660 mV (0.5 % + 5 digit) , ± (0.8 % + 3 digit) @660 mV

Dc Current Measuring Accuracy
(1 % + 5 digit) , ± (2 % + 5 digit) @10 A (1 % + 5 digit) , ± (2 % + 5 digit) @10 A

Ac Voltage Measuring Accuracy
(0.1 % + 3 digit) , ± (1.2 % + 5 digit) @ (6.6 V To 66 V) , ± (1.5 % + 5 digit) @0.66 V (0.1 % + 3 digit) , ± (1.2 % + 5 digit) @ (6.6 V To 66 V) , ± (1.5 % + 5 digit) @0.66 V

Resistance Measuring Accuracy
± (0.8 % + 5 digit) , ± (1.5 % + 5 digit) @ (66 MOhms) ± (0.8 % + 5 digit) , ± (1.5 % + 5 digit) @ (66 MOhms)

Notes:- Show Stocked Products With Similar Attributes.

KPS-MT700 Alternative Parts

We are delighted to provide the KPS-MT700 from our Digital Multimeters category, at competitive rates not only in the United States, Australia, and India, but also across Europe and beyond. A long established and extensive electronic component distribution network has enhanced our global reach and dependability, ensuring cost savings through prompt deliveries worldwide. Client satisfaction is at the heart of our business, where every component counts and every customer matters. Our technical service team is ready to assist you. From product selection to after-sales support, we strive to deliver a seamless and satisfying experience. Are you ready to experience the best in electronic component distribution? Contact X-ON Electronics today and discover why X-On are a preferred choice for the KPS-MT700 and other electronic components in the Digital Multimeters category and beyond.
