X-On Electronics has gained recognition as a prominent supplier of D22-20-10-R0 Rectifiers across the USA, India, Europe, Australia, and various other global locations. D22-20-10-R0 Rectifiers are a product manufactured by KUBARA LAMINA. We provide cost-effective solutions for Rectifiers, ensuring timely deliveries around the world.

D22-20-10-R0 KUBARA LAMINA

Name: D22-20-10-R0
Brand: KUBARA LAMINA
SKU: D222010R0_KUBARA_LAMINA
Availability: InStock
Rating: 5 (11 reviews)

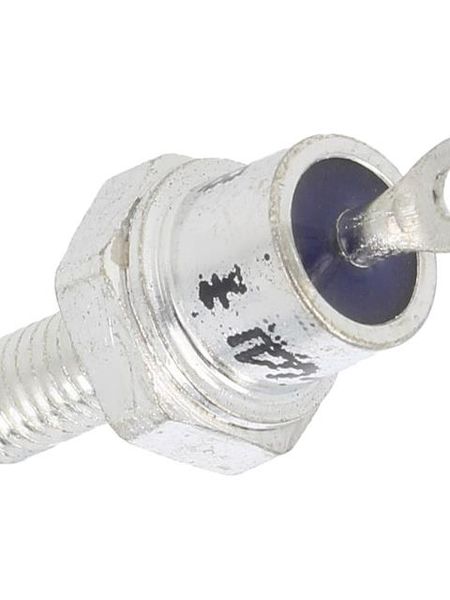

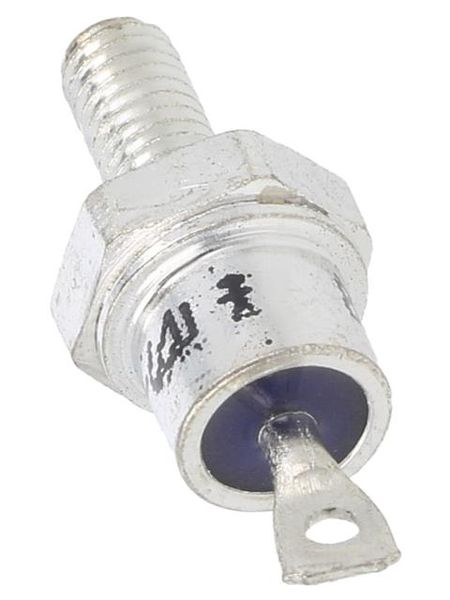

D22-20-10-R0 electronic component of KUBARA LAMINA

Images are for reference only
See Product Specifications

Part No.	D22-20-10-R0
Manufacturer:	KUBARA LAMINA
Category:	Rectifiers
Description:	Diode: rectifying; 1kV; 1.5V; 20A; anode to stud; DO4; M5; Ifsm: 275A
Datasheet:
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 8.386 ea
Line Total: USD 8.39

Availability - 3
Ship by Thu. 06 Mar to Mon. 10 Mar

MOQ: 1 Multiples: 1
Pack Size: 1

D22-20-10-R0 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

3

Ship by Thu. 06 Mar to Mon. 10 Mar

MOQ : 1
Multiples : 1

1 : USD 8.386
3 : USD 6.398
8 : USD 6.048
25 : USD 5.964
100 : USD 5.81

Specifications

Manufacturer

KUBARA LAMINA KUBARA LAMINA

Product Category

Rectifiers Rectifiers

Mounting Style

stud stud

Package / Case

DO4 DO4

Vr - Reverse Voltage

1 kV 1 kV

If - Forward Current

20 A 20 A

Vf - Forward Voltage

1.5 V 1.5 V

Category

Rectifiers Rectifiers

Type Of Diode

rectifying rectifying

Fastening Thread

M5 M5

Semiconductor Structure

anode To stud anode To stud

Max. Load Current

50 A 50 A

Max. Forward Impulse Current

275 A 275 A

Notes:- Show Stocked Products With Similar Attributes.
