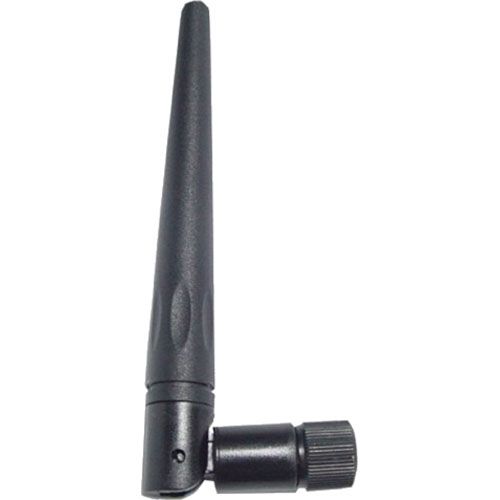

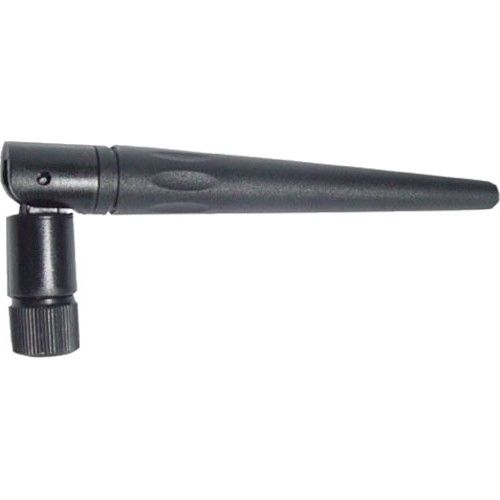

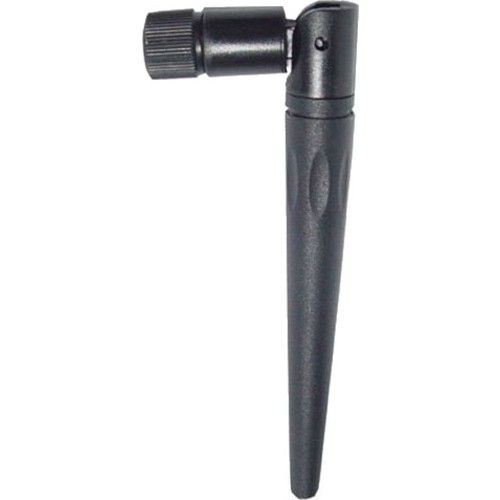

HyperLink Wireless 2.4 GHz 2.2 dBi Model: HG2402RD-RSF Rubber Duck Antenna Applications Compact size, only 4.13 long Tilt and Swivel design RP-SMA Connector Features 802.11b/g/n OEM Replacement Antenna 2.4GHz ISM Band Description This compact 2.4GHz omnidirectionalrubber-duc WiFi antenna provides broad coverage and 2.2 dBi gain. It is a coaxial sleeve design with an omni-directional pattern. It is ideally suited for IEEE 802.11b and 802.11g wireless LANs, Bluetooth and other WLAN applications. Only 4.13 long, this flexible antenna features a tilt-and-swivel reverse-polarity SMA plug connector, allowing them to be used vertically, at a right angle, or any angle in-between. It is suitable as a replacement antenna for many access points and radios that are equipped with reverse-polarity SMA connectors including D-Link, Linksys WET11 and others (Note: This RF antenna is used as areplacemen antenna rather than arange extende antenna. It should yield similar range to most radio s stock antennas). Application Note: This antenna is not for use with U.S. Robotics RP-SMA equipped devices. Specifications Mechanical Specifications Weight 0.52 oz. (15 g) Length 4.13 (105 mm) Diameter 0.4 (10 mm) Finish Matte Black Connector Reverse Polarity SMA Plug Operating Temperature -40 C to 85 C (-40 F to 185 F) Polarization Vertical RoHS Compliant Yes Electrical Specifications Weight 0.52 oz. (15 g) Length 4.13 (105 mm) Diameter 0.4 (10 mm) Finish Matte Black L-COM, INC. 45 BEECHWOOD DRIVE NORTH ANDOVER, MA 01845 WWW.L-COM.COM E-MAIL: SALES L-COM.COM PHONE: 1-800-343-1455 FAX: 1-978-689-9484 L-com, Inc. All Rights Reserved. L-com Global Connectivity and the L-com logo are registered marks. Antenna Gain Pattern L-COM, INC. 45 BEECHWOOD DRIVE NORTH ANDOVER, MA 01845 WWW.L-COM.COM E-MAIL: SALES L-COM.COM PHONE: 1-800-343-1455 FAX: 1-978-689-9484 L-com, Inc. All Rights Reserved. L-com Global Connectivity and the L-com logo are registered marks.
