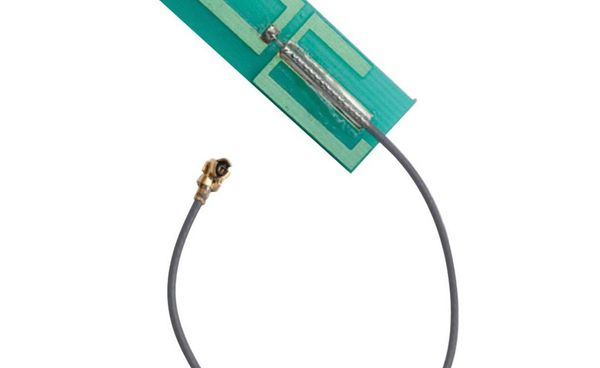

Internal Wireless Device Antenna Mini-Nanoblade MINI-NANOBLADE INTERNAL EMBEDDED ANTENNA The evolution of technology has brought the need to communicate everywhere and at all times without being confined to one space. Laird s internal wireless device antennas feature wide bandwidth to enhance the performance and application of portable wireless devices based on standards such as 802.11 and Bluetooth . The antennas are specifically designed to be embedded inside devices for aesthetically pleasing integration with high durability. FEATURES MARKETS Covers 2.4 to 2.5 GHz for 802.11b, and 4.9 to 6 GHz for 802.11a and Bluetooth devices all US, European, and Japanese WLAN applications ANTENNA PATTERNS IEEE 802.11 devices Coaxial cable pigtail with various connector choices 2.4 GHz Omnidirectional patterns at all frequencies with increased gain in upper bands for optimal coverage Conformance to European RoHS Directive 2002/95/EC ELECTRICAL SPECIFICATIONS Frequency 2.4 - 2.5 GHz, 4.9 - 6 GHz Gain 2.0-2.5 dBi (2.4-2.5 GHz), 2.5-4.8 dBi (4.9-5.875 GHz) Polarization Vertical, Omnidirectional Nominal Impedance 50 ohms VSWR < 2.:1 max across all bands Size 1.42 x 0.475 4.9 GHz CABLE AND CONNECTORS MODEL NUMBER PART NUMBER CABLE CONNECTOR MOUNT TAPE MINIBLADE-IP03T MAF94149 80mm, 1.13mm IPEX YES MINIBLADE-IP03 MAF94264 80mm, 1.13mm IPEX NO MINIBLADE-FL03 MAF94265 80mm, 1.13mm N/A NO MINIBLADE-IP05T MAF94383 125mm, 1.13mm IPEX YES 5.875 GHz VSWR Americas: +1.847 839.6925 IAS-AmericasSales lairdtech.com Europe: +44.1628.858941 IAS-EUSales lairdtech.com Asia: IAS-AsiaSales lairdtech.com ANT-DS-MINI-NANOBLADE 0617 Any information furnished by Laird Technologies, Inc. and its agents is believed to be accurate and reliable. All specifications are subject to change without notice. Responsibility Middle East and Africa: +44.1628.858941 for the use and application of Laird Technologies materials rests with the end user, since Laird Technologies and its agents cannot be aware of all potential uses. Laird Technologies makes no warranties as to the fitness, merchantability or suitability of any Laird Technologies materials or products for any specific or general uses. Laird IAS-MEASales lairdtech.com Technologies shall not be liable for incidental or consequential damages of any kind. All Laird Technologies products are sold pursuant to the Laird Technologies Terms and Conditions of sale in effect from time to time, a copy of which will be furnished upon request. Copyright 2016 Laird Technologies, Inc. All Rights Reserved. Laird, Laird Technologies, the Laird Technologies Logo, and other marks are trade marks or registered trade marks of Laird Technologies, Inc. or an affiliate company thereof. Other product or service names may be the property of third parties. Nothing herein provides a license under any Laird Technologies or any third party intellectual property rights. www.lairdtech.com X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Antennas category: Click to view products by Laird Connectivity manufacturer: Other Similar products are found below : GAN30084EU 930-033-R GW17.07.0250E 1513563-1 EXE902SM APAMPG-117 MAF94383 W3908B0100 W6102B0100 YE572113- 30RSMM 108-00014-50 66089-2406 SPDA17RP918 A09-F8NF-M A09-F5NF-M RGFRA1903041A1T W3593B0100 W3921B0100 SIMNA-868 SIMNA-915 SIMNA-433 W1044 W1049B090 A75-001 WTL2449CQ1-FRSMM CPL9C EXB148BN 0600-00060 TRA9020S3PBN-001 Y4503 GD5W-28P-NF MA9-7N GD53-25 GD5W-21P-NF C37 MAF94051 MA9-5N EXD420PL B1322NR QWFTB120 MAF94271 MAF94300 GPSMB301 FG4403 AO-AGSM-OM54 5200232 MIKROE-2349 WCM.01.0111 MIKROE-2393 MIKROE-2352
