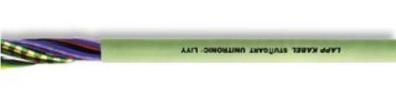

PRODUCT INFORMATION UNITRONIC LiYY Data transmission cable with colour code acc. to DIN 47100 UNITRONIC LiYY: Low-frequency PVC data cable DIN47100 coded Flexible (0.34mm multi-wire Maxi TERMI-POINT) Flame retardant, Instrumentation Control Automation Info The classic for multi-functional use Benefits Space-saving installation due to small cable diameters Multifunctional application possibilities Depending on the quantity, the outer sheath can also be produced in other colours to match your application needs Application range UNITRONIC LiYY is also used as a control and signal cable in electronics of computer systems, electronic control equipment, office machines, balances, etc. Dry or damp rooms Occasional flexing Product features Despite the large number of cores, LiYY data cables have small outer diameters Flame-retardant according IEC 60332-1-2 Norm references / Approvals Based on VDE 0812 Product Make-up Fine-wire/multi-wire (0.34 mm) strand made of bare copper wires Core insulation made of PVC Outer sheath made of PVC Outer sheath colour: pebble grey (RAL 7032) Last Update (13.02.2017) 1 / 5 2017 Lapp Group - Technical changes reserved Product Management www.lappkabel.de You can find the current technical data in the corresponding data sheet. PN 0456 / 02 03.16 PRODUCT INFORMATION UNITRONIC LiYY Technical Data Classification: ETIM 5.0 Class-ID: EC000104 ETIM 5.0 Class-Description: Control cable Core identification code: DIN 47100 without colour repetition, refer to Appendix T9 Mutual capacitance: Approx. 120 nF/km Peak operating voltage: (not for power applications) at 0.14 mm: 350 V at 0.25 mm: 500 V Inductivity: approx. 0.65 mH/km Conductor stranding: Stranded, fine-wire 0.34 mm: 7-wire Minimum bending radius: Occasional flexing: 10 x outer diameter Fixed installation: 4 x outer diameter Test voltage: At 0.14 mm: 1200 V Temperature range: Occasional flexing: -5C to +70C Fixed installation: -40C to +80C Note Unless specified otherwise, the shown product values are nominal values. Detailed values (e.g. tolerances) are available upon request. Copper price basis: EUR 150/100 kg. Refer to catalogue appendix T17 for the definition and calculation of copper-related surcharges. Please find our standard lengths at: www.lappkabel.de/en/cable-standardlengths Packaging size: coil 30 kg or 250 m, otherwise drum Please specify the preferred type of packaging (e.g. 1 x 500 m drum or 5 x 100 m coils). Photographs are not to scale and do not represent detailed images of the respective products. * Prices are net prices without VAT and surcharges. Sale to business customers. Last Update (13.02.2017) 2 / 5 2017 Lapp Group - Technical changes reserved Product Management www.lappkabel.de You can find the current technical data in the corresponding data sheet. PN 0456 / 02 03.16
