0034304 Lapp Kabel

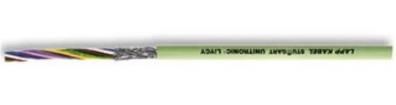

PRODUCT INFORMATION UNITRONIC LiYCY Screened data transmission cable with colour code acc. to DIN 47100 UNITRONIC LiYCY: Low-frequency PVC data cable DIN 47100 coded Flexible (0.34mm multi-wire Maxi TERMI-POINT) Flame retardant Screened, Instrumentation Control Info CPR: Article number choice under www.lappkabel.com/cpr Interference signals Benefits Overall braid minimises electrical interference Multifunctional application possibilities Application range Screened cables with small dimensions are suitable for use in computer systems, insturmentation technology, office equipment, balances. Dry or damp rooms Product features Flame-retardant according IEC 60332-1-2 Norm references / Approvals Based on VDE 0812 Product Make-up Fine-wire/multi-wire (0.34 mm) strand made of bare copper wires Core insulation made of PVC Tinned-copper braiding Last Update (14.04.2020) 1 / 6 2020 Lapp Group - Technical changes reserved Product Management www.lappkabel.de You can find the current technical data in the corresponding data sheet. PN 0456 / 02 03.16 PRODUCT INFORMATION UNITRONIC LiYCY Outer sheath made of PVC Outer sheath colour: grey (similar to pebble grey/ RAL 7032) Technical Data Classification ETIM 5: ETIM 5.0 Class-ID: EC000104 ETIM 5.0 Class-Description: Control cable Classification ETIM 6: ETIM 6.0 Class-ID: EC000104 ETIM 6.0 Class-Description: Control cable Core identification code: DIN 47100 without colour repetition, refer to Appendix T9 Mutual capacitance: C/C: approx. 120 nF/km C/S: approx. 160 nF/km Inductivity: approx. 0.65 mH/km Conductor stranding: Stranded, fine-wire 0.34 mm: 7-wire Minimum bending radius: Occasional flexing: 15 x outer diameter Fixed installation: 6 x outer diameter Temperature range: Occasional flexing: -5C to +70C Fixed installation: -40C to +80C Note Unless specified otherwise, the shown product values are nominal values. Detailed values (e.g. tolerances) are available upon request. Copper price basis: EUR 150/100 kg. Refer to catalogue appendix T17 for the definition and calculation of copper-related surcharges. Please find our standard lengths at: www.lappkabel.de/en/cable-standardlengths Packaging size: coil 30 kg or 250 m, otherwise drum Please specify the preferred type of packaging (e.g. 1 x 500 m drum or 5 x 100 m coils). Photographs and graphics are not to scale and do not represent detailed images of the respective products. Prices are net prices without VAT and surcharges. Sale to business customers only. Last Update (14.04.2020) 2 / 6 2020 Lapp Group - Technical changes reserved Product Management www.lappkabel.de You can find the current technical data in the corresponding data sheet. PN 0456 / 02 03.16
