1119112 Lapp Kabel

Name: 1119112
Brand: Lapp Kabel
SKU: 1119112_Lapp Kabel
Availability: InStock
Rating: 5 (11 reviews)

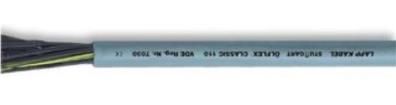

1119112 electronic component of Lapp Kabel

Images are for reference only
See Product Specifications

Part No.	1119112
Manufacturer:	Lapp Kabel
Category:	Multi-Conductor Cables
Description:	Wire; stranded; Cu; ÖLFLEX® CLASSIC 110; 12G0,75mm2; grey; PVC
Datasheet:	1119112 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 5.1809 ea
Line Total: USD 5.18

Availability - 213
Ship by Mon. 23 Dec to Wed. 25 Dec

MOQ: 1 Multiples: 1
Pack Size: 1

1119112 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

213

Ship by Mon. 23 Dec to Wed. 25 Dec

MOQ : 1
Multiples : 1

1 : USD 5.1809
6 : USD 3.0032
16 : USD 2.8324

Specifications

Manufacturer
Lapp Kabel Lapp Kabel

Product Category
Multi-Conductor Cables Multi-Conductor Cables

Wire Gauge - AWG
19AWG 19AWG

Outside Diameter
9.9 mm 9.9 mm

Jacket Colour
Grey Grey

Jacket Material
PVC PVC

Conductor Material
Copper Copper

Voltage Rating
500 V 500 V

Brand
Lapp Kabel Lapp Kabel

Cable Shielding
Unscreened Unscreened

No. Of Cores
12Core 12Core

Conductor Area Csa
0.75Mm² 0.75Mm²

No. Of Max Strands X Strand Size
25 x 0.2 mm 25 x 0.2 mm

External Diameter
9.9 mm 9.9 mm

Product Range
YY Series YY Series

Svhc
No SVHC (15 - Jan - 2019) No SVHC (15 - Jan - 2019)

Bend Radius Min
15Mm 15Mm

Cable Type
Unshielded Unshielded

Conductor Make-Up
25 / 0.2Mm 25 / 0.2Mm

Core-Earth / Core-Core Voltage Rating
300/500 V 300/500 V

Flexing Temperature Max
70 C 70 C

Flexing Temperature Min
- 5 C - 5 C

Installed Bend Radius Min
4 4

Insulation Resistance
20 GOhms 20 GOhms

Operating Temperature Max
70 C 70 C

Operating Temperature Min
- 5 C - 5 C

Outer Diameter
9.9 mm 9.9 mm

Secondary Insulation Colour
Grey Grey

Secondary Insulation Material
PVC PVC

Test Voltage
4000 V 4000 V

Voltage Rating Vac
500 V 500 V

Notes:- Show Stocked Products With Similar Attributes.
