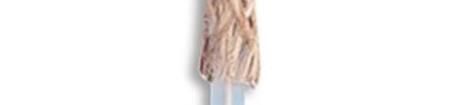

2170002 DATA SHEET valid from : RG 178 B/U 12.06.2008 Application Coaxial cable for radio- and computer systems as well as the entire field of commercial radio-frequency technology and electronics for low range transmissions, and with the small cable diameter, for application in narrow spaces. Cable design and electrical properties of RG 178 B/U to MIL-C 17 F. Designation according to MIL-C 17 F : M 17/93 RG178. The cable is intended for limited flexible use and for static laying. PTFE material is used to meet requirements concerning low and high ambient temperatures resp. chemical stress. Design 2 Inner conductor stranded, silvered, copper-clad steel wires, (30AWG), 0.057 mm , 7 x 0.102 mm, 0.30 0.025 mm Insulation PTFE, , 0.84 0.051 mm Outer conductor silvered copper braid (38AWG), coverage nom. 96 % Sheath FEP, transparent brown, outer diameter 1.81 0.13 mm Marking on the sheath: No marking required. Electrical properties at 20C DC resistance inner conductor 802 max./km Insulation resistance 10 min. Gxkm Capacitance at 1 kHz nom. nF/km 93 Nominal velocity of propagation % 69 Impedance 50 2 Acc. to MIL 17/93G Attenuation at 1 MHz dB/100m nom. 8 5 MHz dB/100m nom. 15 10 MHz dB/100m nom. 20 20 MHz dB/100m nom. 26 50 MHz dB/100m nom. 32 max. 38,05 100 MHz dB/100m nom. 43 max.52,49 200 MHz dB/100m nom. 62 max.75,46 400 MHz dB/100m nom. 92 max.108.26 800 MHz dB/100m nom. 134 max.154.2 1 GHz dB/100m nom. 153 max.170.6 2 GHz dB/100m max.249.34 3 GHz dB/100m max.308.4 HF voltage, peak value (not for power purposes) max. kV 1.0 Working voltage (nominal 50 Hz U kV 1.5 eff voltage) Test voltage U kV 2 eff Mechanical and thermal properties Weight approx. kg/km 10 Minimum bending radius fixed installation mm 10 repeated bendings mm 19 Permissible temperature range fixed installation C - 90 up to + 200 Fire load kWh/m 0.01 RoHS directive This cable confirms to RoHS directive (2002/95/EG) elaborated by: Document: DB2170002EN page 1 of 1 TE-K: A. Khan / H. Pfeffer Nr.: 0019/0894 X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for lapp kabel manufacturer: Other Similar products are found below : 00008779 0026122 0026156 0026124 0026127 0026253 70002624 70002708 70002728 EPIC KIT H-A 10 BS TBF-LB M20 EPIC KIT H- A 3 BS AGS EPIC KIT H-BE 16 BS AG EPIC KIT LS1 A1 3+PE+4 K 22260044 22260046 22260134 22260986 22262020 22262022 22262023 22262027 21700623 22260045 22260122 22260638 22260651 4510052 4520013 52005949 52005990 52006010 52006030 52006107 52006133 52006153 52006173 52006650 52103115 52103165 52115750 53015600 53015620 53015650 53015810 53016610 53016830 53111700 53111710 53111730 53316240
