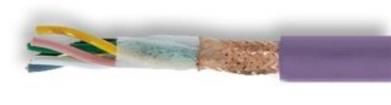

BUS Systems Cable - FD BUS IBS For highly flexible application in power chains and frequently moved machine parts (Remote bus cable + Installation remote bus cable) SPECIFICATION Remote Bus Cable (RBC) UNITRONIC-FD BUS P IBS: Superfine strands of bare copper wires, PE core insulation, cores twisted to pairs, colour coded to DIN 47100, wrapping, screen braiding of copper wires, outer sheath of polyurethane compound, halogen free, flame retardant to VDE 0472 part 804, test type B (IEC 323.1), violet (RAL 4001) Certified by INTERBUS CLUB Installation Remote Bus Cable (INBC) UNITRONIC-FD BUS P COMBI IBS: Data pairs: Superfine wire strands of bare copper wires, cores twisted in pairs, core colours white-brown/green-yellow/grey-pink 2 Cores for power supply: Strands (1.0mm ) of bare copper wires, core colours red, blue, green/yellow. Overall screening: tinned copper wires. Outer sheath: Polyurethane compound, halogen free, flame retardant to VDE 0472, part 804, test type B (IEC 323.1), violet (RAL 4001). Certified by INTERBUS-CLUB TECHNICAL DATA Minimum bending radius: flexing: 15 x cable diameter Temperature range: flexing: -30C to +70C peak: 250V (not for purposes Working voltage: of power/high voltage current) Characteristic impedance (Ohms): 100 Ohms Approx. outside 2 No. of cores and mm per conductor Part Number + Description diameter in mm 3 x 2 x 0.25 2170 216 Remote Bus cable 8.1 3 x 2 x 0.25 + 3 X 1.0 2170 218 Installation remote Bus cable 7.9 UNITRONIC Flexing Interbus BUS Cable Signal and Control Cables used in the Manufacturing and Process Industries UNITRONIC Interbus BUS cables are designed for demanding manufacturing and process environments. todays high speed control requirements. They function Our advanced designs provide excellent protection from as communication vehicles between control level EMI emissions. Lapp supplies flexible, flexing, and devices, such as PLCs and numerous lower level outdoor cable types, which are certified to Interbus devices, sensors and actuators. The cables deliver conformance requirements. precise data transmissions required in todays UNITRONIC Interbus BUS Cables Construction: Flexing Versions Finely stranded bare copper conductors TPE insulation conductors paired non-wicking wrap tinned copper braid flame retardant polyurethane jacket. Cable Attributes OR- FR- CF- MP- 05 02 01 05 Technical Data: Minimum Bending Radius Nominal Capacitance: for continuous flexing: 15 x cable diameter Cond/ Cond: 18pF/ft Cond/ Shield: 32pf/ft o o Temperature Range: -30 C to +70 C Impedance: 100 Z Nominal Voltage: 250V Transmission rate: 1 Mbit/sec. Test Voltage: 1500V Color Code: DIN 47100, Chart 7, Page 674 17/3c: Red, Blue, Green/Yellow Part Conductor Description Application Jacket Nominal Outer Approx. Number Description Color Diameter Weight inches mm lbs/mft kg/km 911284 24/3pr Bus FD P IBS Flexing Green .311 7.9 43 64 2170218 24/3pr + 17/3c Bus FD P Combi IBS Flexing Violet .311 7.9 62 92 2170216 24/3pr Bus FP P IBS- UL/CSA Flexing Violet .311 7.9 43 64 2170818 24/3pr + 17/3c Bus FD P Combi IBS- UL/CSA Flexing Violet .311 7.9 62 92 Key to description terms: P = Polyurethane outer jacket IBS = Remote bus cable for Interbus Combi = Remote installation cable for Interbus (bus cable & power supply) Interbus is a registered trademark of Phoenix Contact. Lapp is a member of the INTERBUS Club. 800-774-3539 www.lappusa.com 157
