4126105S Lapp Kabel

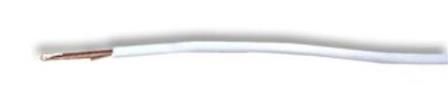

PRODUCT INFORMATION LiY Stranded hook-up wire for telecommunication devices and electronic components LIY, control cable, PVC, stranded hook-up wire for telecommunication devices and electronic components, flame-retardant, max. +70 C Info PVC control hook-up wire Cost-effective Application range Stranded hook-up wires for wiring of telecommunication devices and electronic components within devices Product features Flame-retardant according IEC 60332-1-2 Spool: d1 = 18 mm d2 = 150 mm b = 85 mm Norm references / Approvals Based on VDE 0812 Product Make-up Stranded copper wire Core insulation: PVC-based, type YI 2/TI 2 according to VDE 0207-4 Last Update (01.02.2017) 1 / 4 2017 Lapp Group - Technical changes reserved Product Management www.lappkabel.de You can find the current technical data in the corresponding data sheet. PN 0456 / 02 03.16 PRODUCT INFORMATION LiY Technical Data Classification: ETIM 5.0 Class-ID: EC000993 ETIM 5.0 Class-Description: Single core cable Peak operating voltage: 500 V (0.14 mm) 900 V (0.25 sq.mm) Conductor stranding: 0.14 mm: 18 strands (each with 0.10 mm ) 0.25 mm: 14 strands (each with 0.15 mm ) Nominal voltage: Operating voltage < 50 VAC UPP - peak-to-peak voltage: 250 V Test voltage: 1200 V (0.14 mm) 2500 V (0.25 mm) Temperature range: Fixed installation: -30C to +70C Note Unless specified otherwise, the shown product values are nominal values. Detailed values (e.g. tolerances) are available upon request. Copper price basis: EUR 150/100 kg. Refer to catalogue appendix T17 for the definition and calculation of copper-related surcharges. Photographs are not to scale and do not represent detailed images of the respective products. * Prices are net prices without VAT and surcharges. Sale to business customers. Last Update (01.02.2017) 2 / 4 2017 Lapp Group - Technical changes reserved Product Management www.lappkabel.de You can find the current technical data in the corresponding data sheet. PN 0456 / 02 03.16
