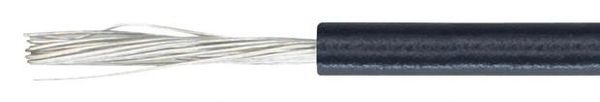

U.I. Lapp PRODUCT INFORMATION GmbH MULTI-STANDARD SC 2.1 29.11.2013 USA: UL-listed (MTW), Canada: CSA (TEW), Europe: <HAR> H07V-K (depending on cross s.), tin-coated strands For use in the most important global markets Reduction in technical documentation Easier storage increases the cost-effectiveness of the production process Works withConductor end sleeves XL, insulate Oil-resistant Application range Factory wiring Field wiring Internal wiring of devices Control cabinet wiring Design Fine-wire strand made of tinned-copper wires Special PVC-based core insulation No outer sheath, no nylon jacket, no outer wrapping Norm references / Approvals Multi-standard cables have conductor strands with nominal sizes in mm or AWG/kcmil. The master size is mentioned in the table below, while the equivalent size of the other system can be found in the Appendix T16 of this catalogue. For this related secondary size the cross-section of the conductor mostly works out to be greater than thespecified nominal value. Cable type certifications: <HAR> H07V-K acc. EN 50525-2-31, UL AWM style 1015 (by UL acc. UL standard UL 758, U.I. Lapp GmbH s UL AWM file number: E63634), (UL) MTW (by UL acc. UL standard UL 1063, U.I. Lapp GmbH s (UL) MTW file number: E198296), CSA TEW (by CSA acc. CSA standard CSA C22.2 No. 127, CSA class 5835-01) Product features Flame-retardant according IEC 60332-1-2 Flame-retardant according to UL VW1/CSA FT1 Oil-resistant Remark Unless specified otherwise, the shown product values are nominal values. Detailed values (e.g. tolerances) are available upon request. Copper price basis: EUR 150/100kg. Refer to catalogue appendix T17 for the definition and calculation of copper-related surcharges. Packaging size: Coil 30 kg, otherwise drum Photographs are not to scale and do not represent detailed images of the respective products. Non-harmonised, nominal cross-sections: 0.5 mm, 0.75 mm, 1 mm, 16 mm *for conventional use, **for careful bending O = outer diameter The outer diameters stated in the part number table are maximum values. Product Management Document: LAPP PRO108167EN.pdf 1 / 9 PN 0486/0 03. 0 2012 Lapp Group - Technical changes reserved Photographs are not to scale and do not represent detailed images of the respective products.U.I. Lapp PRODUCT INFORMATION GmbH MULTI-STANDARD SC 2.1 29.11.2013 Technical Data Classification: ETIM 5.0 Class-ID: EC000993 ETIM 5.0 Class-Description: Single core cable Specific insulation resistance: > 10 GOhm x cm Conductor stranding: Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5 Minimum bending radius: OD 8 mm: 4 x OD*/2 x OD** 8 < OD 12 mm: 5 x OD*/3 x OD** OD > 12 mm: 6 x OD*/4 x OD** Nominal voltage: HAR / IEC: U/U: 450/750 V UL (AWM): U: 600 V UL (MTW): U: 600 V CSA (TEW): U: 600 V Test voltage: 2500 V Temperature range: Fixed installation: HAR/IEC: -40C to +70C UL (AWM): -40C to +105C UL (MTW): -40C to +90C CSA (TEW): -40C to +105C Product Management Document: LAPP PRO108167EN.pdf 2 / 9 PN 0486/0 03. 0 2012 Lapp Group - Technical changes reserved Photographs are not to scale and do not represent detailed images of the respective products.
