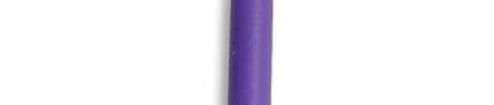

PRODUCT INFORMATION H07V-K <HAR> European <HAR> cable type certification H07V-K, HAR, power and control cable, PVC, 450/750V, wiring of devices and control cabinets, flame-retardant, class 5/ fine wire, fixed installation, ring/spool Info CPR: Article number choice under www.lappkabel.com/cpr <HAR> Benefits Cables <HAR>marking also stands for the international endorsement of national certification institutes testing marks and certificates, e. g. <VDE><HAR>. The <HAR>marking is of special importance in case of goods traffic between European countries. Application range Laying in tubes, exposed or buried in plaster, and in closed installation ducts For direct laying on racks, troughs and tubes only as potential equalisation conductor Product features Flame-retardant according IEC 60332-1-2 Spool: d1 = 18 mm d2 = 200 mm b = 85 mm Norm references / Approvals <HAR> cable type certification acc. EN 50525-2-31 No cable type certified core insulation colours according to EN 50525-1/ VDE 0285-525-1: transparent, green (single colour), yellow (single colour), all double colours (except of green-yellow and yellow-green) Product Make-up Fine-wired copper conductor of bare copper strands in line with conductor class 5 acc. IEC 60228 Core insulation: Based on PVC Last Update (17.08.2017) 1 / 7 2017 Lapp Group - Technical changes reserved Product Management www.lappkabel.de You can find the current technical data in the corresponding data sheet. PN 0456 / 02 03.16 PRODUCT INFORMATION H07V-K <HAR> Technical Data Classification: ETIM 5.0 Class-ID: EC000993 ETIM 5.0 Class-Description: Single core cable Conductor stranding: Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5 Minimum bending radius: According to EN 50565-1 OD 8 mm: 4 x OD*/2 x OD** 8 < OD 12 mm: 5 x OD*/3 x OD** OD > 12 mm: 6 x OD*/4 x OD** Nominal voltage: U0/U: 450/750 V Test voltage: 2500 V Current rating: VDE 0298 Part 4 EN 50565-1/ VDE 0298-565-1 Temperature range: Fixed installation: -40C to +80C Moved: +5C to +70C Note Unless specified otherwise, the shown product values are nominal values. Detailed values (e.g. tolerances) are available upon request. Copper price basis: EUR 150/100 kg. Refer to catalogue appendix T17 for the definition and calculation of copper-related surcharges. Packaging size: Coil 30 kg, otherwise drum Photographs are not to scale and do not represent detailed images of the respective products. Prices are net prices without VAT and surcharges. Sale to business customers only. *for conventional use, **for careful bending O = outer diameter The outer diameters stated in the part number table are maximum values. Last Update (17.08.2017) 2 / 7 2017 Lapp Group - Technical changes reserved Product Management www.lappkabel.de You can find the current technical data in the corresponding data sheet. PN 0456 / 02 03.16
