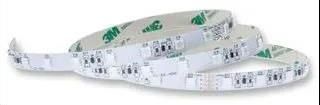

PRODUCT OVERVIEW LINEAR FLEX BASIC LL LFBLL-MCRGB-24V- 10S200-20 PRODUCT DESCRIPTION Voltage-based, flexible LED module Ideal for linear dynamic special-effect lighting Suitable for use where low lighting levels are required Dynamic colour mix within RGB LED multi-chip Controlled using pulse width modulation (PWM) Double layer circuit board with optimised thermal management Fixed using self-adhesive 3M adhesive tape TECHNICAL DATA/OVERVIEW Operating voltage 24 VDC Nominal capacity / m 14,4 W Nominal capacity / segment 2,88 W LED type SMD 5050 LED spacing 20 mm LED quantity / m 50 Cut size 200 mm / 10 LED Dimensions (l x w x h) 3000 x 10 x 2,1 mm Service life >36.000 h / L70 Tc point temperature Tc max. +70 C Ambient temperature -25 +50 C ESD classification Testing severity level 1 CONNECTION-RELATED INFORMATION Pad dimensions ( l x w ) 1,6 x 1,6 mm Quantity of pads 4 Max. wire cross section 0,5 mm Max. assembly length m 6 FULFILMENT OF STANDARDS EN 62031 IEC 62717 DIN 5510-2 EN 62471 EN 45545, -1, -3 CE / RoHS The values and images presented are subject to change due to technical innovations, and ledxon modular GmbH are provided without separate notification. March 2017 1SPECIFIC TECHNICAL DATA LINEAR FLEX BASIC LL LFBLL-MCRGB-24V- 10S200-20 SPECIFIC DATA OVERVIEW Item no. Light colour Wavelength Typical lumen / m Control Operating voltage Red 618 nm - 625 nm 118 lm Common anode (CA) 24 VDC 9009038 Green 520 nm - 525 nm 299 lm Common anode (CA) 24 VDC Blue 458 nm - 463 nm 71 lm Common anode (CA) 24 VDC PHOTOMETRIC DATA Typical Light Typical Wavelength Luminous flux CRI Beam Item no. luminous colour wavelength tolerance tolerance (Ra) angle flux / m Red 622 nm 618 nm - 625 nm 118 lm 16 % - 120 9009038 Green 523 nm 520 nm - 525 nm 299 lm 15 % - 120 Blue 461 nm 458 nm - 463 nm 71 lm 20 % - 120 The values and images presented are subject to change due to technical innovations, and ledxon modular GmbH are provided without separate notification. March 2017 2
