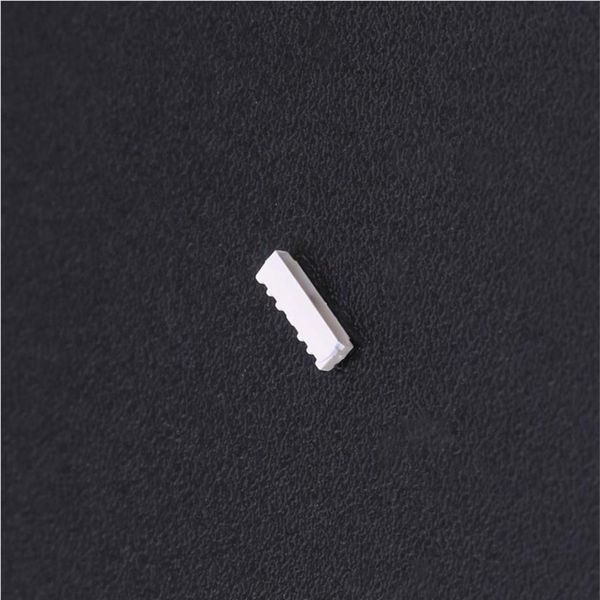

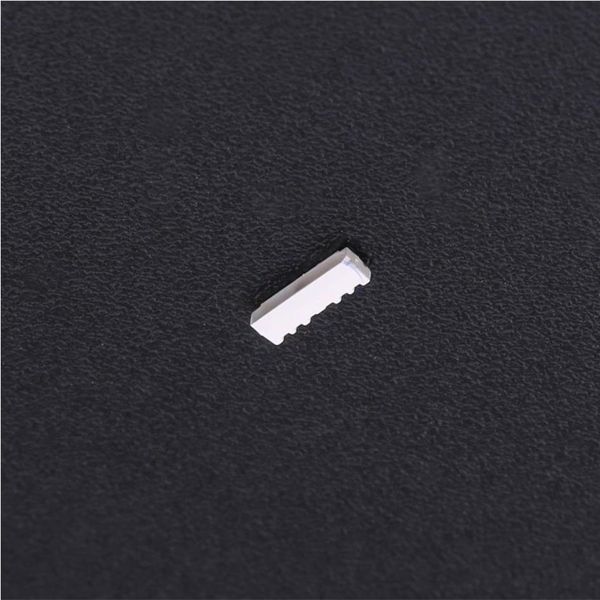

LTW-008RGB2-PH1 Lite-On

LITE-ON TECHNOLOGY CORPORATION P r o p e r t y o f L i t e - O n O n l y Features * Package in 12mm tape on 7 diameter reels. * Compatible with automatic placement equipment. * Compatible with infrared and vapor phase reflow solder process. * EIA STD package. * I.C. compatible. * Meet green product and Pb-free(According to RoHS) Package Dimensions Coplanarity LSL: 0.00 mm (Lead is higher) USL: 0.08 mm (PPA is higher) Part No. Lens Color Source Color InGaN Blue LTW-008RGB2-PH1 White Diffused InGaN Green AlInGaP Red Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is 0.1 mm (.004 ) unless otherwise noted. 3. Coplanarity: The stand-off from PPA to solder surface of leads is limited by USL: 0.08mm LSL: 0.00mm means the solder surface of leads is higher 0.00mm or lower 0.08mm than PPA in limit. 4. The size of burr which is vertical to solder surface must lower than 0.08mm in limit. Part No. : LTW-008RGB2-PH1 Page : 1 of 13 BNS-OD-C131/A4 LITE-ON TECHNOLOGY CORPORATION P r o p e r t y o f L i t e - O n O n l y Absolute Maximum Ratings at Ta=25 Rating Parameter Symbol Unit R G B Power Dissipation P 75 120 120 mW o 1 Peak Forward Current I 100 100 100 mA FP Continuous Forward Current I 40 40 40 mA F Reverse Voltage V 5 V R Operating Temperature Range T -40 ~ +80 C opr Storage Temperature Range T -40 ~ +100 C stg 1, 2 Soldering Condition T 260 For 5 Seconds sol Note: Operating the LED (in an application) under reverse bias condition might result in damage or failure of the component. Suggestion IR Reflow Profile For Pb Free Process : IR-Reflow Soldering Profile for lead free soldering (Acc. to J-STD-020D) Part No. : LTW-008RGB2-PH1 Page : 2 of 13 BNS-OD-C131/A4
