X-On Electronics has gained recognition as a prominent supplier of 2N6504G SCRs across the USA, India, Europe, Australia, and various other global locations. 2N6504G SCRs are a product manufactured by Littelfuse. We provide cost-effective solutions for SCRs, ensuring timely deliveries around the world.

2N6504G Littelfuse

Name: 2N6504G
Brand: Littelfuse
SKU: 2N6504G_Littelfuse
Availability: InStock
Rating: 5 (11 reviews)

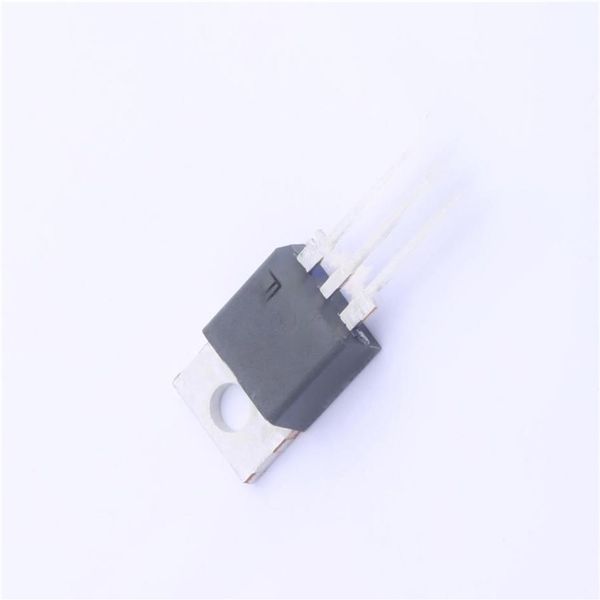

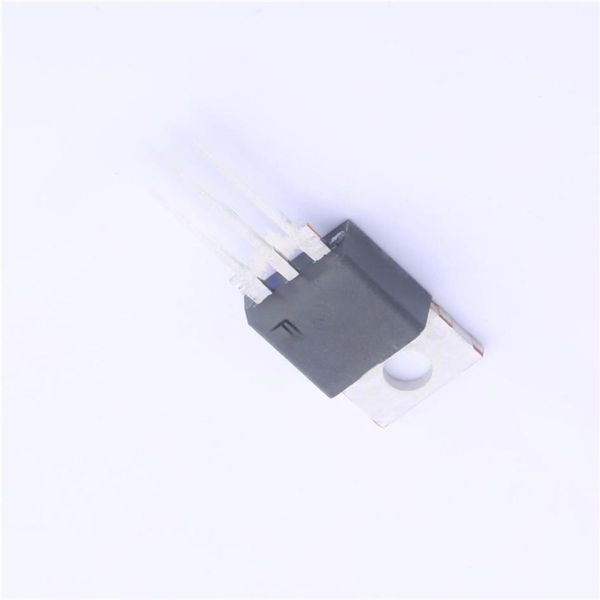

2N6504G electronic component of Littelfuse

Images are for reference only
See Product Specifications

Part No.	2N6504G
Manufacturer:	Littelfuse
Category:	SCRs
Description:	SCRs 50V 25A
Datasheet:	2N6504G Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 0.6221 ea
Line Total: USD 0.62

Availability - 167
Ship by Fri. 06 Dec to Wed. 11 Dec

MOQ: 1 Multiples: 1
Pack Size: 1

2N6504G More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

167

Ship by Fri. 06 Dec to Wed. 11 Dec

MOQ : 1
Multiples : 1

1 : USD 0.6221
10 : USD 0.5305
50 : USD 0.4802
100 : USD 0.423
500 : USD 0.3977
1000 : USD 0.3863

Specifications

Manufacturer
Littelfuse Littelfuse

Product Category
SCRs SCRs

Category
Scrs Scrs

Peak Repetitive Off-State Voltage Vdrm
50 V 50 V

Gate Trigger Current Max Igt
30 mA 30 mA

Current It Av
16 A 16 A

On State Rms Current Itrms
25 A 25 A

Thyristor Case Style
TO - 220AB TO - 220AB

No. Of Pins
3Pins 3Pins

Peak Non Rep Surge Current Itsm 50Hz
250 A 250 A

Holding Current Max Ih
40 mA 40 mA

Gate Trigger Voltage Max Vgt
1.5 V 1.5 V

Operating Temperature Max
125 C 125 C

Product Range
2N6504 Series 2N6504 Series

Msl
- -

Svhc
No SVHC (20 - Jun - 2016) No SVHC (20 - Jun - 2016)

Notes:- Show Stocked Products With Similar Attributes.
