X-On Electronics has gained recognition as a prominent supplier of NC14-100M1 Clamp Multimeters & Accessories across the USA, India, Europe, Australia, and various other global locations. NC14-100M1 Clamp Multimeters & Accessories are a product manufactured by LUMEL. We provide cost-effective solutions for Clamp Multimeters & Accessories, ensuring timely deliveries around the world.

NC14-100M1 LUMEL

Name: NC14-100M1
Brand: LUMEL
SKU: NC14100M1_LUMEL
Availability: InStock
Rating: 5 (11 reviews)

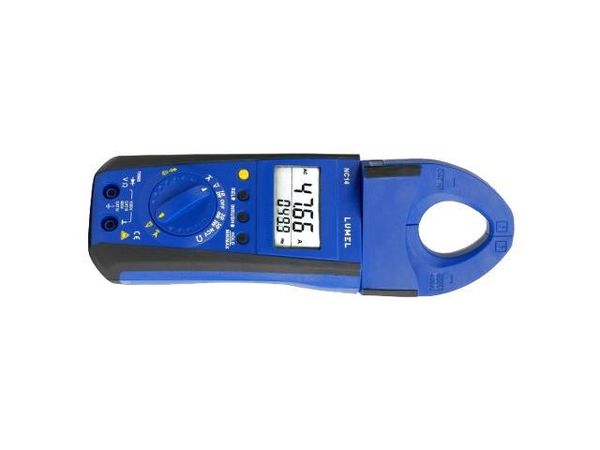

NC14-100M1 electronic component of LUMEL

Images are for reference only
See Product Specifications

Part No.	NC14-100M1
Manufacturer:	LUMEL
Category:	Clamp Multimeters & Accessories
Description:	Power clamp meter; Øcable: 40mm; LED; I AC: 400A; 999.9V; True RMS
Datasheet:	NC14-100M1 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 285.7533 ea
Line Total: USD 285.75

Availability - 1
Ship by Wed. 27 Nov to Fri. 29 Nov

MOQ: 1 Multiples: 1
Pack Size: 1

NC14-100M1 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

1

Ship by Wed. 27 Nov to Fri. 29 Nov

MOQ : 1
Multiples : 1

1 : USD 285.7533
3 : USD 275.0076

Specifications

Manufacturer
LUMEL LUMEL

Product Category
Clamp Multimeters & Accessories Clamp Multimeters & Accessories

Category
Clamp Multimeters Accessories Clamp Multimeters Accessories

Kind Of Display Used
LED LED

Standard Equipment
test leads, bag, backprobes pins (2 pcs.) test leads, bag, backprobes pins (2 pcs.)

Measuring Instrument Features
automatic power - off, HOLD function (for holding display readout), MIN/MAX function, non - contact voltage detector, low - pass filter, Polish language, with an extra quality inspection certificate automatic power - off, HOLD function (for holding display readout), MIN/MAX function, non - contact voltage detector, low - pass filter, Polish language, with an extra quality inspection certificate

Conform To The Norm
EN61010 1000V CAT III, EN61010 600V CAT IV EN61010 1000V CAT III, EN61010 600V CAT IV

Ac Current Measuring Accuracy
(1 , 5 % + 5 digits) (1 , 5 % + 5 digits)

Type Of Meter
power clamp meter power clamp meter

Weight With Battery
500 g 500 g

Max. Diameter Of Measured Cable
40 mm 40 mm

True Effective Value Measurement
True RMS True RMS

Measurement
AC voltage, DC voltage, reactive power, active power, apparent power, power factor, DC current, AC current, phase angle θ, harmonics, inrush current, crest factor, THD, peak current AC voltage, DC voltage, reactive power, active power, apparent power, power factor, DC current, AC current, phase angle θ, harmonics, inrush current, crest factor, THD, peak current

Dimensions
90x270x70mm 90x270x70mm

Reactive Power Measurement
9.999 To 9999 kVA R 9.999 To 9999 kVA R

Apparent Power Measurement
9.999 To 9999k VA 9.999 To 9999k VA

Ac Voltage Measuring Accuracy
(0 , 75 % + 5 digits) (0 , 75 % + 5 digits)

Manufacturer Series
NC14 NC14

Phase Angle Measurement
0...360° 0...360°

Active Power Measurement
9.999 To 9999 kW 9.999 To 9999 kW

Ac Current Measuring Range
400 A 400 A

Ac Voltage Measuring Range
999.9 V 999.9 V

Power Factor Measurement
- 1 To 0 To 1 - 1 To 0 To 1

Power Supply
b A ttery 6LR61 9 V x1 b A ttery 6LR61 9 V x1

Battery/ Rechargeable Battery
battery 6LR61 9V x1 battery 6LR61 9V x1

Kind Of Measurement
constant measurement constant measurement
