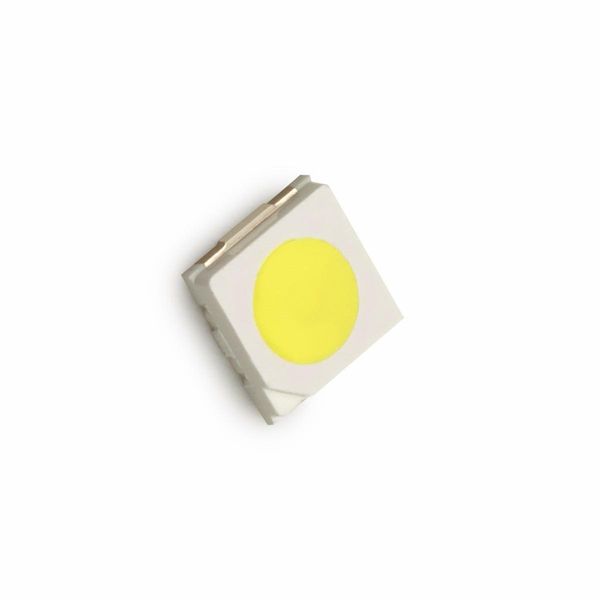

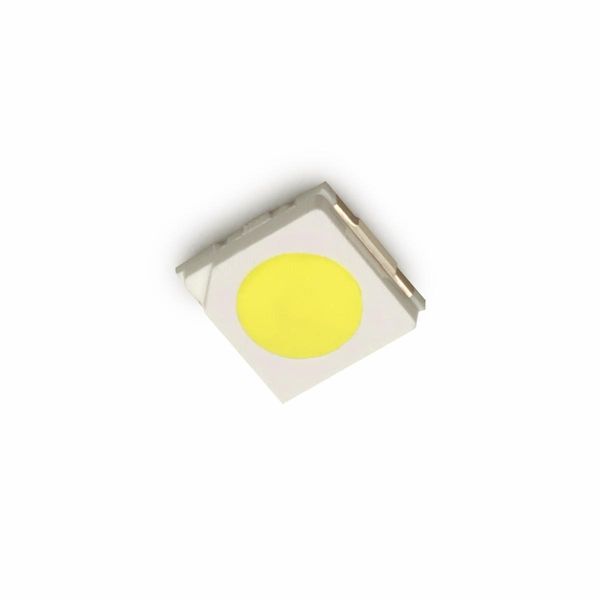

L135-L567003500000 Lumileds

IllumInatIon luXeon 3535l olor c line Color LEDs that deliver the perfect amount of color you need. No More. No less. The LUXEON 3535L Color Line enables a new era of color lighting. This robust color line provides high performance and is targeted at cost effective designs. Complemented by a broad range of white offerings, the LUXEON 3535L Color Line enables RGBW applications. This product line extends the comprehensive LUXEON Color Family. Features and BeneFIts PrImary aPPlIcatIons Industry standard package enables drop-in replacement for Architectural & Entertainment existing 3535 packages Single die and single source architecture for optical control Lamps Common focal length with LUXEON Rebel and LUXEON Z Color LEDs Color Tunable Illumination Full color palette for a wider spectrum range Specialty Lighting Emergency Vehicle Signage No. E352519 DS146 LUXEON 3535L Color Line Product Datasheet 2018 Lumileds Holding B.V. All rights reserved.Table of Contents General Product Information 2 Product Test Conditions...................... 2 Part Number Nomenclature .................... 2 Lumen Maintenance ....................... 2 Environmental Compliance ..................... 2 Performance Characteristics 3 Product Selection Guide...................... 3 Optical Characteristics ....................... 3 Electrical and Thermal Characteristics.................... 4 Absolute Maximum Ratings . 4 Characteristic Curves . 5 Spectral Power Distribution Characteristics ................. 5 Light Output Characteristics .................... 5 Forward Current Characteristics..................... 8 Radiation Pattern Characteristics .................... 9 Product Bin and Labeling Definitions 10 Decoding Product Bin Labeling..................... 10 Luminous Flux Bins ....................... 11 Radiometric Power Bins . 11 Dominant Wavelength Bins ...................... 12 Peak Wavelength Bins....................... 12 Color Bin Definitions ........................ 13 Forward Voltage Bins ..................... 14 Mechanical Dimensions 14 Reflow Soldering Guidelines 15 JEDEC Moisture Sensitivity ....................... 15 Solder Pad Design ........................ 16 Packaging Information . 16 Pocket Tape Dimensions ...................... 16 Reel Dimensions ......................... 17 DS146 LUXEON 3535L Color Line Product Datasheet 20181021 2018 Lumileds Holding B.V. All rights reserved. i
