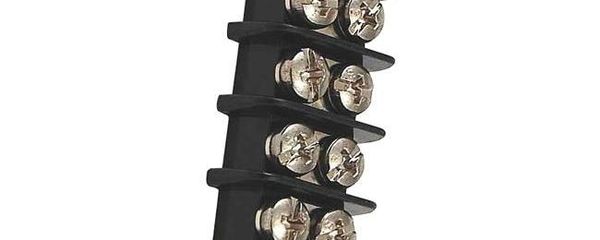

Product Data Sheet 600A GP XX Std Replace XX with 01 through 22 for number of poles Terminal Block Open Back 15 Amps, 300 Volts (AC/DC) (6 Pole shown) Insulator Strip Required for Voltage Rating Copper Wire Only Wire Range with Wire Binding Screw: 12 - 22 AWG 3/8 Centers Application torque: 9 in. lbs Electrical Ratings: 15A with Listed ring lug or unprepared wire, (Based on NEC Table 310-16, 75C columns) 300 Volts AC/DC (UL 1059 Class B, User Group Commercial Appliances) Short Circuit Current Rating: 10,000A (Default) Approved for Factory and Field Wiring with Solid Wire Approved for Factory Wiring with Stranded Wire Mechanical Ratings: Storage and transportation temperature range: -35C to 110C (-31F to 230F)* Maximum insulator base temperature: 150C (302F)* UL RTI Flammability rating of insulator base: UL 94V-1 * Use outside these ratings needs to be judged in the end-use application. Materials: Connector (Eyelet): Brass, nickel plated. Insulator base: Phenolic Screw, 6-32 Binder head, Phil-Slot: Steel, nickel plated Agency Approvals: UL Recognized, UL 1059 Terminal Block Standard, File No. XCFR2.47811 CSA Certified, CSA C22.2 No. 158, File No. LR19766 CE compliant, IEC 60947-7-1 RoHS Compliant Wire Range: Copper Wire Stranding Classes - Number of Strands Wire Size Torque Solid Class B Class C 12 9 in. Lbs 1 7 19 14 9 in. Lbs 1 7 19 16 9 in. Lbs 1 7 19 18 9 in. Lbs 1 7 19 20 9 in. Lbs 1 7 19 22 9 in. Lbs 7 19 Suggested product mounting hardware: 6 fastener, torque to 10-15 in. lbs. ACCESSORIES: JJ (GDI-30F) Material available. Glass-fiber filler, diallyl ortho-phthalate. UL-94 V0. Certifiable to Military Specifications MIL-M-14 and MIL-P-19833. Printing (for printing options, see Terminal Block Printing on website) Marking strips - sub mounted, black only (FB) (For Printing Options, see section on website) Marking strips top mounted, white only (SW) Insulator strips - sub mounted, black only (BB) (Printing Unavailable). Insulator Strip will be the same width as the molding. Cover top mounted. Order CW (white) or CB (Black). Can be printed. See website. Phil-Slot Brass Screw (PSB) Accessory options may affect ratings consult factory
