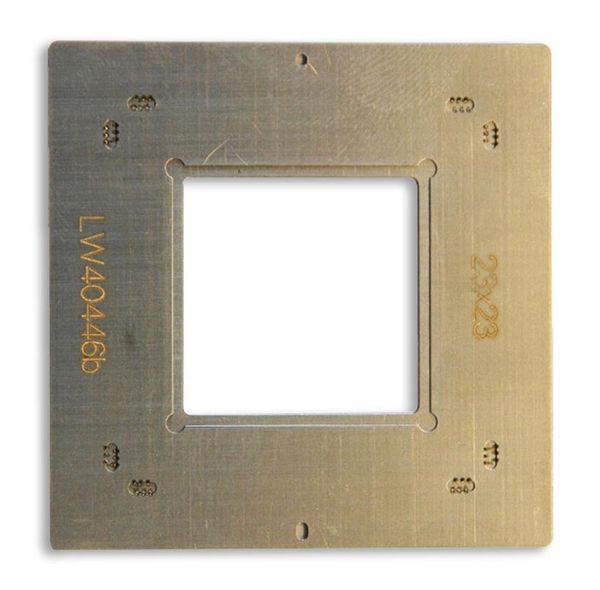

MINIOVEN 04 S - BGA-REBALLER HB00.0033 MINIOVEN 04 S The desktop MINIOVEN 04 S is designed for Reballing area array devices such as BGAs and CSPs along with Prebumping leadless components including QFNs and other surface mount devices. Additionally the Mini-Oven is used to Reflow small form factor assemblies and other thermal applications. The Mini-Oven 04 is convection dominant, it provides extremely uniform heating necessary for simultaneous reflow of large area array components. The integrated processor provides closed-loop thermal control via feedback from a strategically positioned process thermocouple. Up to 99 different heating recipes / profile s can be taught and stored. The Mini-Oven is also available with optional Process Gas Inlet. Use of a nitrogen atmosphere during reflow promotes improved wetting by displacing oxygen and minimizing further oxidation. Reballing and Prebumping tooling is readily available for most standard SMD componments. Features Technical Data System power consumption: 550 VA MINIOVEN 04S Unit Power heater: 500 W, 4 x IR-Lamps Cutter Knife Size heater: 105 x 130 mm SMD Hook Rec. max. component Size: 55 x 55 x 4 mm Cleaning pen with two spare inserts Mains: 1 Phase, 230 VAC Kapton Tape System dimensions: 150 x 300 x 85 mm Optical magnifier 5x MARTIN GmbH Fon: +49 (0)8153 9229-30 We refer to our delivery conditions MINIOVEN-04-S-e farnell Argelsrieder Feld 1b Fax.: +49 (0)8153 9229-39 Subject to change without notice V 2013 07 29.docx 82234 Wessling / Germany Web: www.martin-smt.de MINIOVEN 04 S - BGA-REBALLER Features HB50.0004 Basic Equipment for Mini Oven 04 Set 1 price clean pen, hook, tape, cutter, magnifier Fiber brush clean pen with three spare HT00.0019 Kapton Tape Magnifier 5x Optical Power, 19mmx5m cutter knife with spare wedges, Hook Application Sets LW50.9001 Reball-04 Set eco Standard 1 set LW40.0236 Reballing Fixture BGA 45*45mm for MO-04 Part of set 4 downholder clips LW40.0236 15 23 27 31 LW40.0500 Reballing Frame Set BGA 35 37.5 40 Part of set 7 pieces (15, 23, 27, 31, 35, 37.5, 40) LW40.0500 45 35 Ball=0.762 n=1225 LW40.0543 Reballing Mask BGA 45*45mm Pitch 1.27 1 Part of set n=1225 / Pitch=1,27 / Grid=35*35 / Ball=0,762 LW40.0543 1 35 45 34 Ball=0.762 n=1156 Pitch 1.27 LW40.0686 Reballing Mask BGA 45*45mm 1 LW40.0686 1 34 Part of set n=1156 / Pitch=1,27 / Grid=34*34 / Ball=0,762 45 44 Ball=0.6 n=1936 LW40.0688 Reballing Mask BGA 45*45mm Pitch 1.0 1 Part of set n=1936 / Pitch=1,00 / Grid=44*44 / Ball=0,6 LW40.0688 1 44 45 43 Ball=0.6 n=1936 LW40.0687 Reballing Mask BGA 45*45mm Pitch 1.0 1 Part of set n=1849 / Pitch=1,00 / Grid=43*43 / Ball=0,6 LW40.0687 1 43 1 set SF29.0002 Prebump-04 Set QFN HB50.0005 Tooling and Fixture for QFN Prebumping HB50.0005 Part of set printer, holder, squeegee, tweezers pattern free Maske LWxx.xx11 Prebumping Mask + Frame QFN nach to choose Wahl Part of set Type of standard QFN mask on request LWxx.xx11 Optional Extras LW40.0236 Reballing Fixture BGA 45*45mm for MO-04 1 piece 4 downholder clips LW40.0236 LW40.0448 Reballing Frame BGA 15*15mm eco LW40.0448 1 piece for mini oven, fixture 45*45mm LW40.0446 Reballing Frame BGA 23*23mm eco 1 piece for mini oven, fixture 45*45mm LW40.0446 LW40.0442 Reballing Frame BGA 27*27mm eco LW40.0442 1 piece for mini oven, fixture 45*45mm LW40.0450 Reballing Frame BGA 31*31mm eco 1 piece for mini oven, fixture 45*45mm LW40.0450 45 45 45 45
