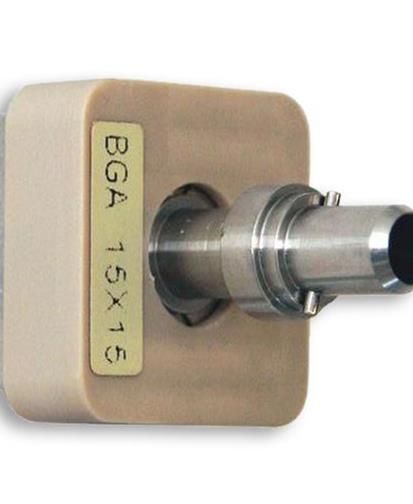

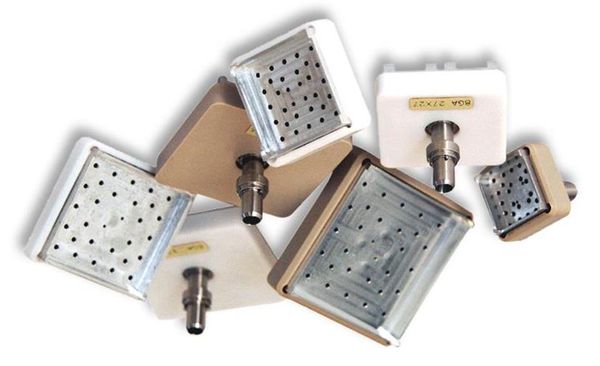

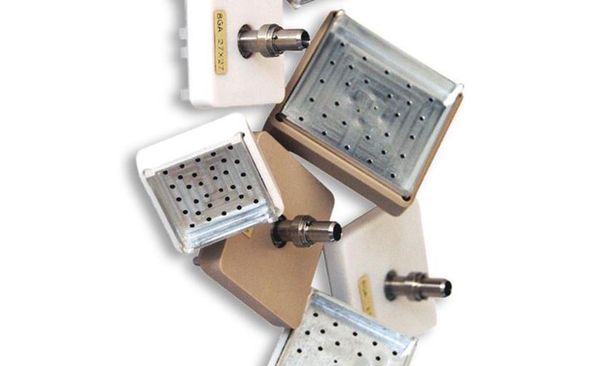

TECH INFO BGA SOLDER NOZZLES MARTIN Solder Nozzles are designed and tested using the latest technologies such as thermal imaging to provide superior thermal uniformity and efficient heat transfer, ensuring complete and simultaneous interconnect reflow. All nozzles share a common heater interface used on all MARTIN Rework Systems. A variety of Solder Nozzle are available including predefined sets for BGAs, SOs, QFPs, CSPs, and QFNs. Individual Solder Nozzles are also available for standard SMDs or connectors. Specialty Solder Nozzles can be created to fit custom designs like i.e. shielding, increase yields or for process optimization, along with developing custom Solder Nozzles to meet specific Rework requirements. Please find here a selection of standard solder nozzles for reference and a guide how to pick the correct type. Features Technical Data LW40.1099 Solder Nozzle Set BGA 7 pieces Uniformity Up to 2C dependent on Nozzle 1x Nozzle for BGA 15x15mm Uniformity Doc upon request 1x Nozzle for BGA 23*23mm 1x Nozzle for BGA 27*27mm Material Isolated Cover: PEEK / Teflon 1x Nozzle for BGA 31*31mm Inner Nozzle: Al + Stainless Steel 1x Nozzle for BGA 33*33mm 1x Nozzle for BGA 35*35mm Temperature Range: -20C up to 450C 1x Nozzle for BGA 37.5*37.5mm MARTIN GmbH Fon: +49 (0)8153 9329-30 We refer to our delivery conditions BGA SOLDER TOOLS-e Argelsrieder Feld 1b Fax.: +49 (0)8153 9329-39 Subject to change without notice V 2013 07 26.docx 82234 Wessling / Germany Web: www.martin-smt.de BGA SOLDER TOOLS (Standard) Selection of Standard Tools and Tool Sets 16.5 24.5 28.5 33.5 LW40.1099 Solder Nozzle Set BGA 36.5 39 41.5 16.5 24.5 28.5 33.5 LW40.1099 1 piece 7 pieces (15, 23, 27, 31, 35, 27.5, 40) 36.5 39 41.5 LW40.1099 LW40.1103 Solder Nozzle Set BGA 4 1 piece 4 pieces (15, 27, 35, 40) LW40.1103 LW40.1024 Solder Nozzle for BGA size 15*15mm 1 piece i.e. for BGA196... 16.5 LW40.1024 LW40.1009 Solder Nozzle for BGA size 23*23mm 1 piece i.e. for BGA169/256f... 24.5 LW40.1009 LW40.1011 Solder Nozzle for BGA size 27*27mm 1 piece i.e. for BGA225... LW40.1011 LW40.1020 Solder Nozzle BGA 31*31mm 1 piece i.e. for BGA329/529... 32.5 LW40.1020 LW40.1069 Solder Nozzle for BGA size 33*33mm 1 piece i.e. for BGA... 34.5 LW40.1069 LW40.1015 Solder Nozzle for BGA size 35*35mm 1 piece i.e. for BGA313/676... 36.5 LW40.1015 LW40.1016 Solder Nozzle for BGA size 37.5*37.5mm 1 piece 39 i.e. for BGA313s/841... LW40.1016 LW40.1040 Solder Nozzle for BGA size 40*40mm 1 piece i.e. for BGA596/900... 41.5 LW40.1040 LW40.1021 Solder Nozzle for BGA size 42.5*42.5mm 1 piece i.e. for BGA540s/1024 44 LW40.1021 Star Tools are available for many SMD sizes. Please contact MRTIN for more Info. LW40.1097 Solder Nozzle Set CSP/QFN 9 11 13 16 1 piece 4 pieces (9,11, 13, 16) (length + 1.4 mm) LW01.0400 Soldering Tool Set SO 9. 15 20 25 9. 15 20 25 1 piece (length + 1.4 mm) for SO...SOL...TSOP, 4 pieces (9, 15, 20, 25) (length + 1.4 mm) HT00.0119 Flux Creme lead free 18g 1 piece 0506 MA, no clean, REL0, with Brush HT00.0119 Kapton-Tape HT00.0062 1 piece 19mm*5,5m 9. 9 11 10 13 9. 12 16 10 15 12 15
