14882 Merlin Gerin

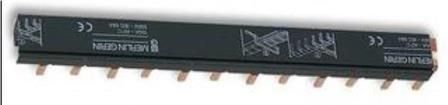

Comb busbars, connectors and assembled terminals Application for Comb busbar C60H When fed by a single cable per phase the busbar is rated 100A at 40C. If two connections (i.e. two cables) are used per phase the rating is increased to 120A. Short circuit rating compatible with the breaking capacity of the MCBs fitted. Short time ratings: 10kA for 30ms, 1800A for 1 second. Suitable for use with all Merlin Gerin MCBs with 18mm width poles (C60HB/HC/HD). o Type suitable for C60H and STI Part N . Technical data 1P 1 row of 12 - 1P MCBs (12) 14881 Rated operational voltage 500V. Complies with 14881 1 row of 54 - 1P MCBs (54) 14801 BS EN 60439-1 2 row of 24 - 1P MCBs (24) 14891 Fully insulated for protection against direct 2P 1 row of 6 - 2P MCBs (6) 14882 contact 1 row of 27 - 2P MCBs (27) 14802 Supplied with insulated end covers 2 row of 12 - 2P MCBs (24) 14892 2 2 Main connection: 16mm direct 25mm via 3P 1 row of 4 - 3P MCBs (4) 14883 o connectors part n . 14885 1 row of 18 - 3P MCBs (18) 14803 2 row of 8 - 3P MCBs (16) 14893 4P 1 row of 3 - 4P MCBs (3) 14884 1 row of 13 - 4P MCBs (13) 14804 2 row of 6 - 4P MCBs (12) 14894 Cable connectors - pack of 4 14885 o Type suitable for DPN Part N . 1P+N 1 row of 13 MCBs 14880 2 row of 12 - 24 MCBs 14890 o Type suitable for C120 NG125 Part N . 1P 16 MCBs 14811 2P 8 MCBs 14812 3P 5 MCBs 14813 4P 4 MCBs 14814 Set of 20 boots for unused teeth 14818 o Accessories Part N . Set of 40 ends caps for 1P and 2P combs 14886 for 3P and 4P combs 14887 Set of 40 boots for unused teeth 14888 Stepped terminals 125/140A (40C) Terminals with holes 125A Isc (kA rms) Installation o 415V Part N . Clipping on to Multifix or symmetrical rails 4 x 10 holes 3.5kA/1s 13512 2 Screwing on to plain or slotted plates, Multifix rails (5 x 10 mm ) + 2 or asymmetrical rails (4 x 16 mm ) + 2 (1 x 35 mm ) 4 x 17holes 3.5kA/1s 13514 2 (8 x 10 mm ) + 2 (8 x 16 mm ) + 13514 2 (1 x 35 mm ) Terminals with clamps 10kA/1s 14949 2 140A 4 x 12 holes (12 clamps 6 mm ) o Type Part N . Distribloc 125 and 160A Distribloc 125 07105 4 pole distribution block comprising: Distribloc 160 07106 A fully insulated, one piece distribution system 2 35mm x 210 07054 4 flexible connections complying with IPXXB (protection against direct contact) Cable capacity A modular cover designed for a 45mm panel slot 2 Distribloc 125 Incoming 6 - 35mm flexible for integration in a row of DIN rail mounted 2 or 10 - 35mm modular products rigid cables Distribloc 160 Incoming Flexible cable Technical data 07105 links fitted to Ui = 690V, Icw = 4.5kA/1s to IEC947-7-1 device Peak withstand current: Ipk = 20kA to IEC439-1 Distribloc 125 & 160 Outgoing Per pole: 2 Rated impulse withstand voltage: Uimp = 8kV 2 x 10mm 2 3 x 6mm 2 7 x 4mm 2 1 x 25mm 2 (16mm multicore) 117X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Merlin Gerin manufacturer: Other Similar products are found below : Merlin Gerin
